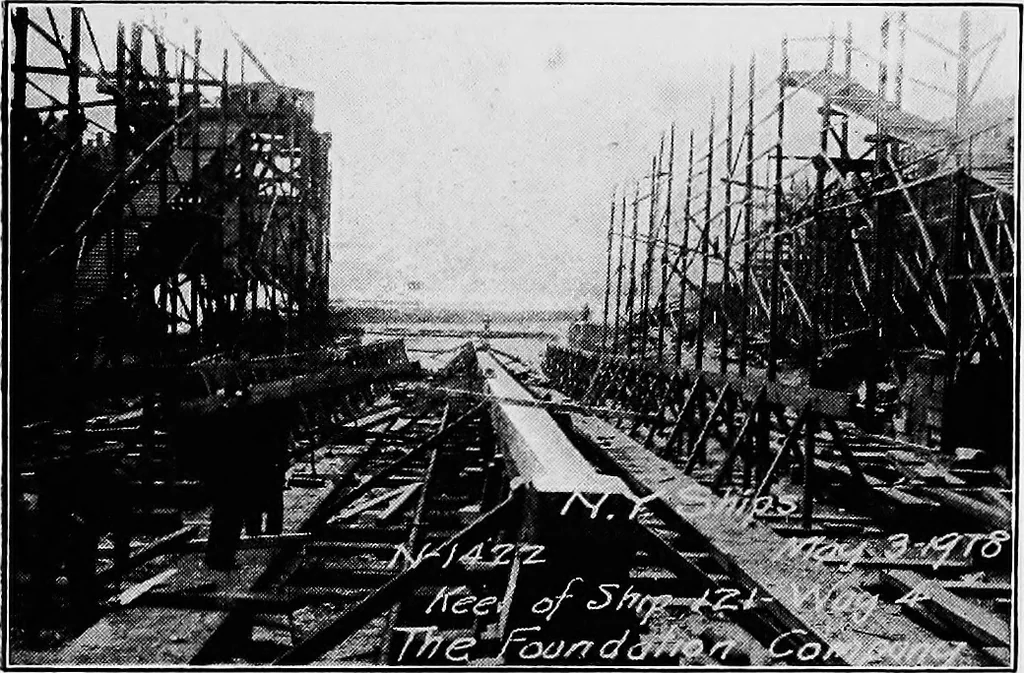

MACHINES AND LABOR-SAVING DEVICES 123 Figure 67 shows the same piece after sixteencuts have been completed, the lower part beveledtwo ways, and the sides surfaced. It leaves themachine as shown in Figure 68, practically fin-ished, requiring comparatively little time with … Figure 70.- -Eecord Keel Laid in Ten Minutes inthe Atlantic Coast. Prominent Yard on hand tools to complete the work as shown in theillustration. Every piece of ceiling used in the ship shown inFigure 69 was beveled on this machine, no handtools being used. Even the back of the ceiling atthe turn…
