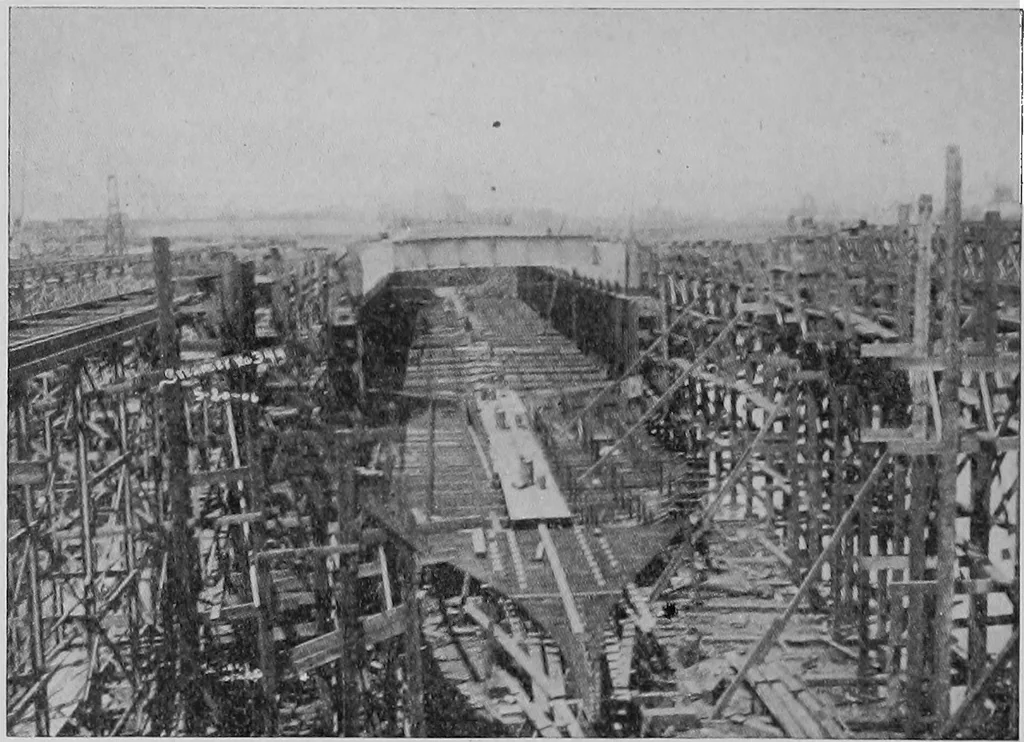

HIP YARD METHODS OF stringers; one clip is left until the intercostals are in place which areput in as soon as the frame is hoisted. The belt frames are also riv-eted up on the ground from the keel to the main deck, only one ofthe clips at the stringers and the lap which comes on the tank topangle… … Fig. 1S2. the top of the belt frame, is also riveted on the ground including thedeck plate between the hatches and all connections on same; theframe rivets and one of the clips for the continuous channels are allthat are left to be riveted in place. At the ends the frames with all the component…
