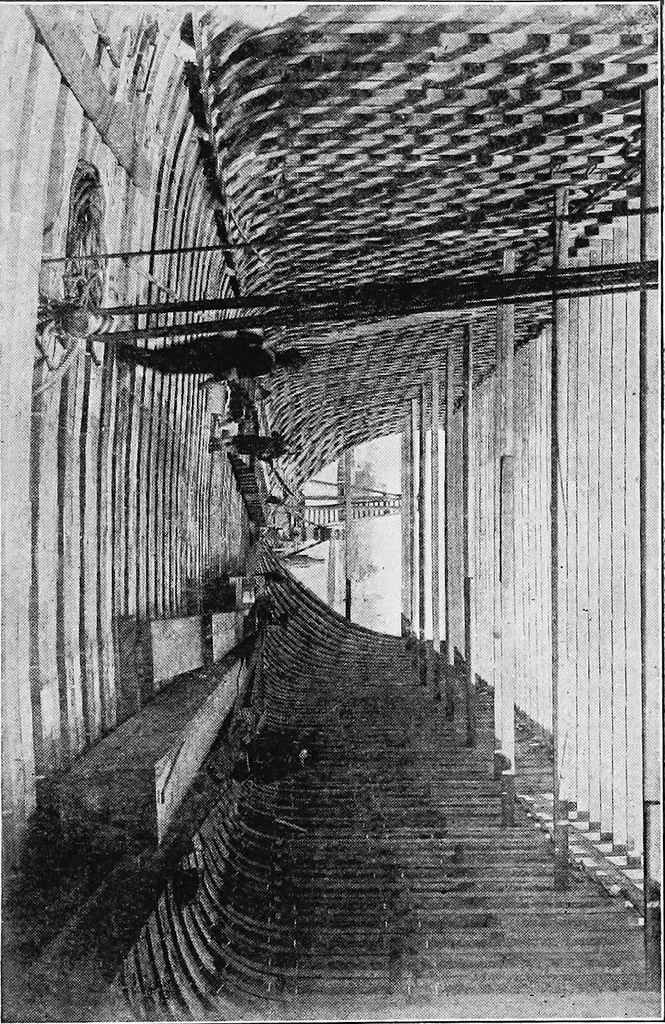

Figure 91.—Stern of Ship, Showing Vertical Planking. with four 1-inch bolts 18 inches long, and edgebolted to the keel with 1 by 36-inch bolts everysecond frame spacing. PLANKING AND FINISHING 147 tVir t^r-^ … 148 COURSE IN WOODEN BOAT AND SHIP BUILDING Bottom, Bilge, and Side Planking.—The bottom,Tjilge, and side planking is fastened with %-incliLolts driven over clinch rings. These rings should
