A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools (1918)

Van Gaasbeek, Richard Montgomery, 1877- · Chicago, F. J. Drake & company · leaf 42

An illustration from A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools, 1918, leaf 42

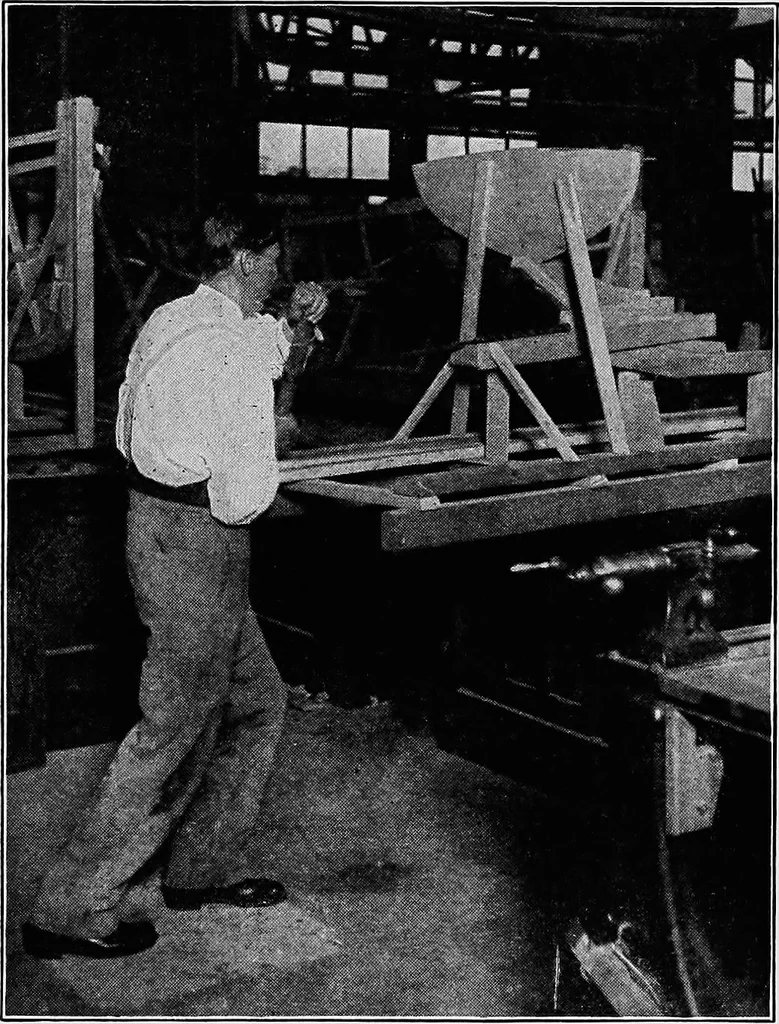

STEM AND STERN CONSTRUCTION 39 … Figure 15.—Boring Tlirougli Sliaft Log for Propeller Shaft. 40 COURSE IN WOODEN BOAT AND SHIP BUILDING mould being the same thickness as the planking,the outside edge must intersect at F, or on therabbet line. Stopwaters.—The stopwaters, or round piecesof wood or dowels, are driven in at all seams…
