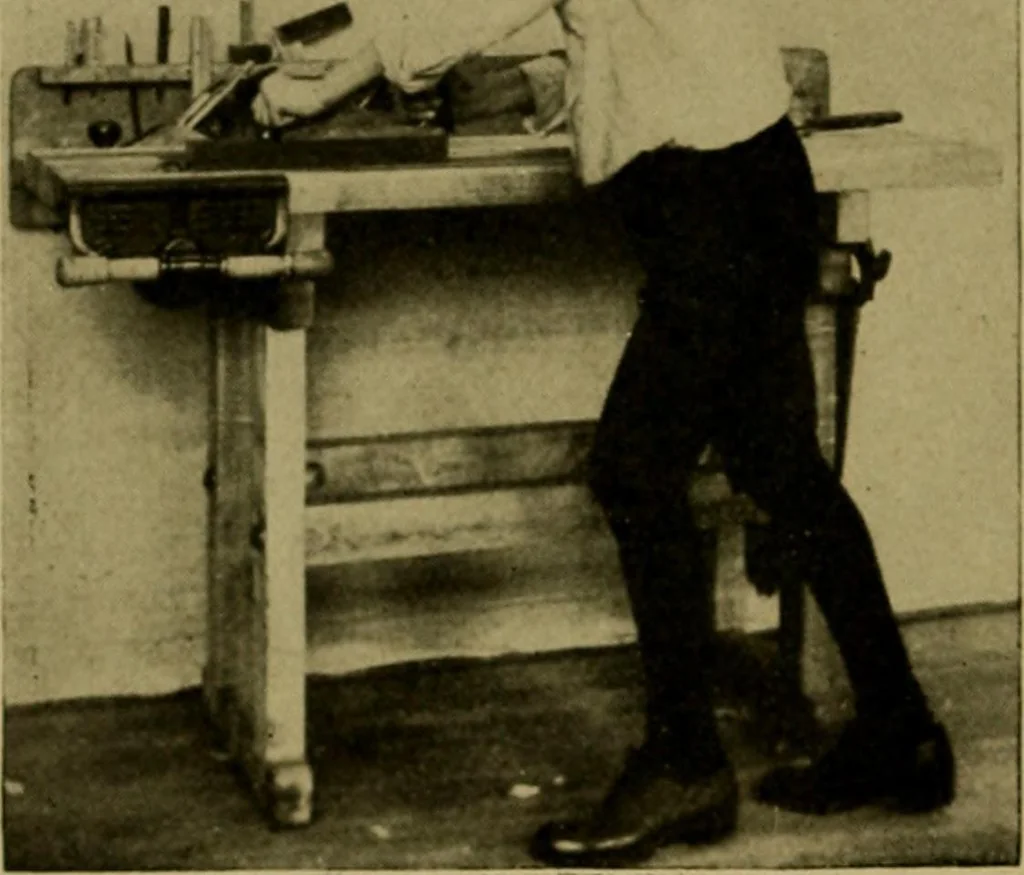

the first work it is better to use only these two.After you have learned to use these properly you can study otherstyles. These two planes differ only in the sizes of the parts. Figs. 7 and8showhow to take hold ofthem and Fig. 9 showshow to place the pieceagainst the bench-stop and the positionof… … Plane Iron. Plane Iron Cap. Plane Iron Screw. Cap. Cap Screw Frog. Y Adjustment. Brass Adjusting Nut. Lateral Adjustment Frog Screw. Handle. Knob. Handle Boltand Nul Knob Bolt and Nut. Handle Screw. Bottom.
