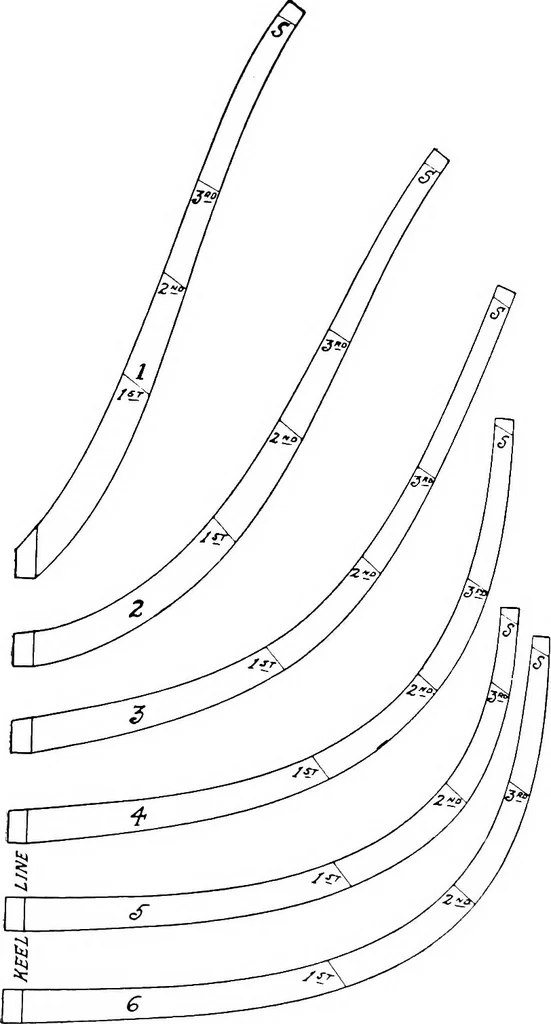

from themould loft floor is similar to the one described forpicking up the lines of the stem and stern con-struction. Another method is shown in Figure 18, using aflexible steel template. This template can be bentto any shape and is held in position by winged nutscrews on the outside. Adjusting the… … Fisuro 10.—Futtock Moulds Forward.
