A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools (1918)

Van Gaasbeek, Richard Montgomery, 1877- · Chicago, F. J. Drake & company · leaf 46

An illustration from A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools, 1918, leaf 46

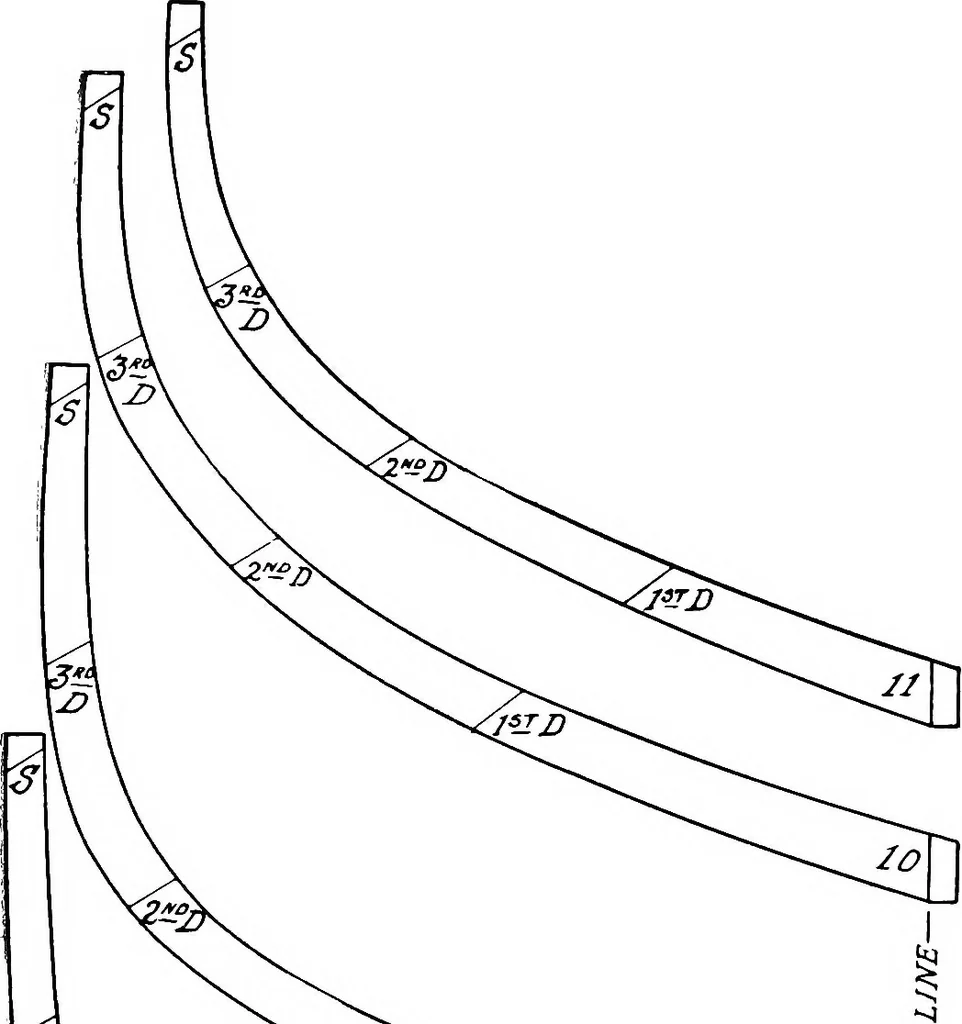

Fisuro 10.—Futtock Moulds Forward. … u:^ w r^j? <9 Figure 17.—Futtock Moulds Aft. u COURSE IN WOODEN BOAT AND SHIP BUILDING plan, Figure 3. These lines give the outside linesof the frames. The width of the frames will de-pend largely upon the size and the demands to bemade upon the vessel.
