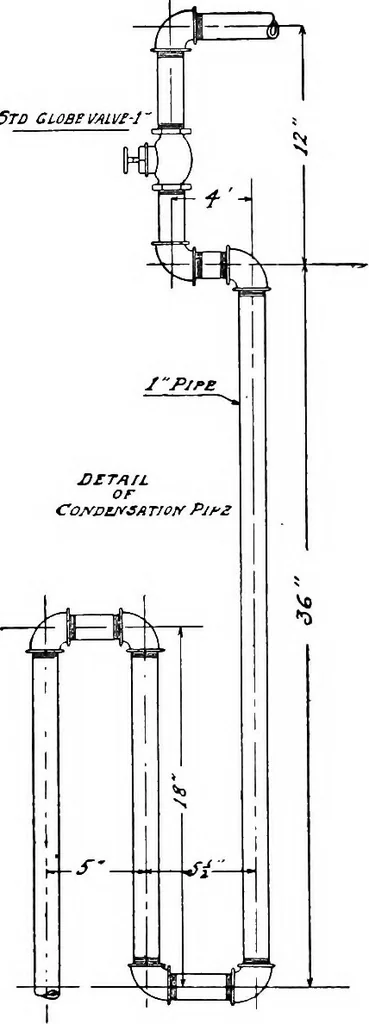

ading to a water seal trap, shownin Figure 22. The water lying in the trap preventsthe steam from escaping. The condensation canbe drained into a pail or connected with the sewerif desired. If the steam box is located out of doors, the con-densation will take care of itself, as it can run offinto… … Figure 22.—Condensation Pipe and Water Seal Trap of Steam Box. made for taking care of the condensation and sur-plus steam. Packing is placed in the rabbet of the door to FUTTOCKS AND FRAMES 49 make it tight, the door locking with an ice-boxfastener. STEAM BENDING Special bending stock should be…
