Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work (1899)
Watson, Egbert P. (Egbert Pomeroy) · New York, D. Van Nostrand company · leaf 95

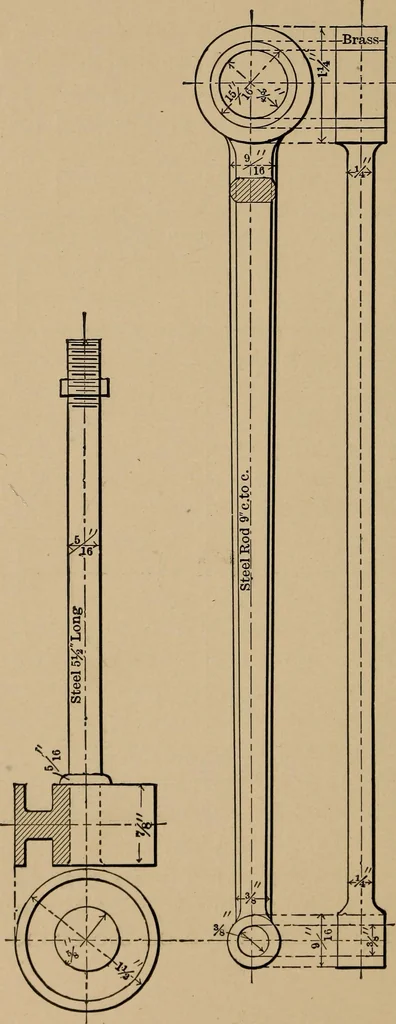

Fig. 21.plate; it is then turned out so that thewill drive in tightly, the edges of the casting, orflanges, being turned when on the cylinder. casting 7* SMALL ENGINES AND BOILERS. … Fig. 22. SMALL ENGINES AND BOILERS. 79 The connecting-rod is a simple job, but the pin-holes will have to be bored on a lathe which willswing the rod. This rod is made with solid ends,for the reason that theengine runs very fast,and small details willwork loose in spite ofgood workmanship.The crank…
Steam-engines
