A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools (1918)
Van Gaasbeek, Richard Montgomery, 1877- · Chicago, F. J. Drake & company · leaf 57

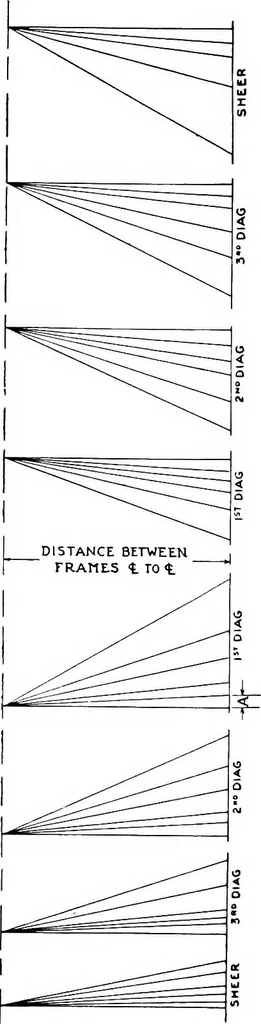

9, bevel H is the bevel for frame 10,bevel I is the bevel for frame 11, and bevel J is thebevel for the transom. All bevels are developedon the second diagonal. Likewise with the forward frames. Draw twolines at right angles to each other, as shown to theleft in Figure 24. On the vertical line… … FUTTOCKS AND FRAMES 55 between frames 5 and 6 on the second diagonal;then the distance between frames 4 and 5, the dis-tance between frames 3 and 4, the distance betweenframes 2 and 3, and the distance between frames 1and 2. All measurements are to be taken on the seconddiagonal between frames and…
Shipbuilding
