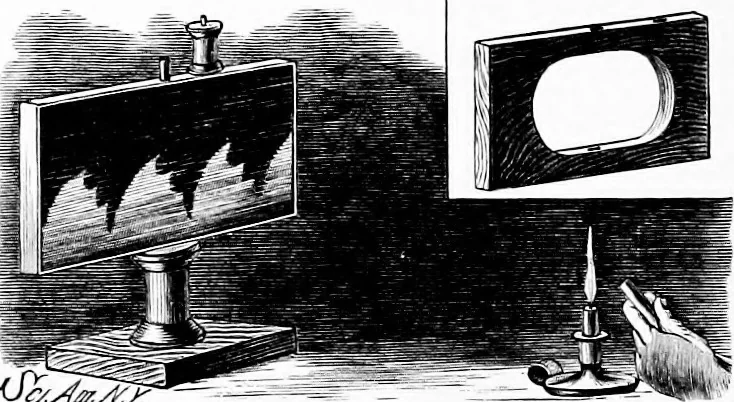

in Fig. 137. In a baseboard is inserted a wire, one-eigrhth inch or more in diameter and about a foot long. On 132 EXPERIMENTAL SCIENCE. this wire is placed an ordinary spool, and above the spool athin apertured board (shown in the detailed view), the boardbeing about 8 inches long and 6 inches… … •Oa^^^^A^^^^^^^-^ - Rotating Mirror. a crank bv which to turn the board. Upon opposite sidesof the board are placed mirrors of a size corresponding tothat of the board, the mirrors being secured to the boardby strips of paper or cloth pasted around the edges. Theimage of the flame is viewed in the…
