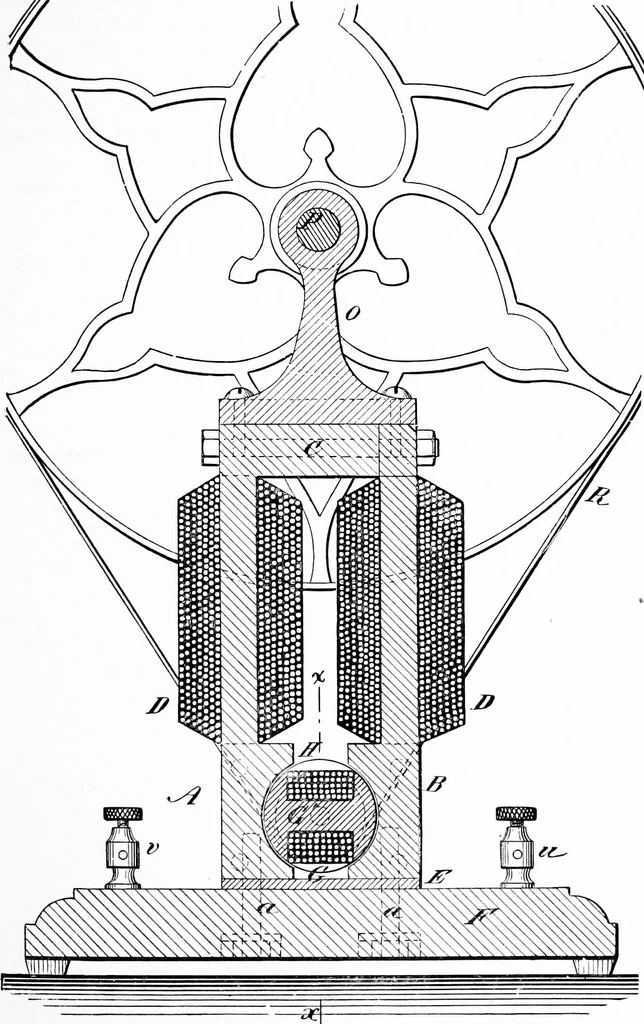

ndwound with No. 18 cotton or silk covered copper wire. Itis, in fact, a very short and wide bar electro-magnet, havingenlarged and elongated ends of the form of a segment of aC3dinder. In diameter the armature is only a very little lessthan that of the cylindrical space between the parts, A B,of… … Hand Power Dynamo—Vertical Section—Half Size. 490 EXPERIMENTAL SCIENCE. To opposite ends of the armature are fitted the brass heads,1 J, into which are screwed the shafts, b c. The core, G, ofthe armature is filed to remove roughnesses and hard scale,and the heads and shafts are fitted to the ends…
