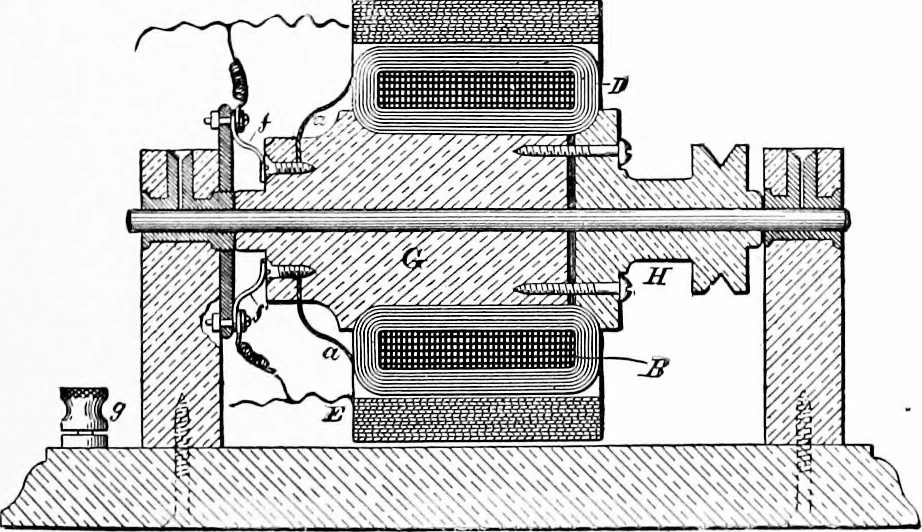

Side Elevation, Partly in Section, of Simple Electric Motor—One-third Size. motor to run an ordinary foot lathe or two or three sewingmachines. If it is desirable to adapt the motor to a batteryof higher resistance, the armature and field magnet may be Fig. 495. … Vertical Transverse Section of Motor, taken through the Center of theArmature—One-third Size, showing the Field M.ignet in a Shunt. wound with finer wire. For a dynamo circuit the field mag-net oi the motor should be placed in a shunt. (See diagramof Plating Dynamo.) If the motor is wound with wire…
