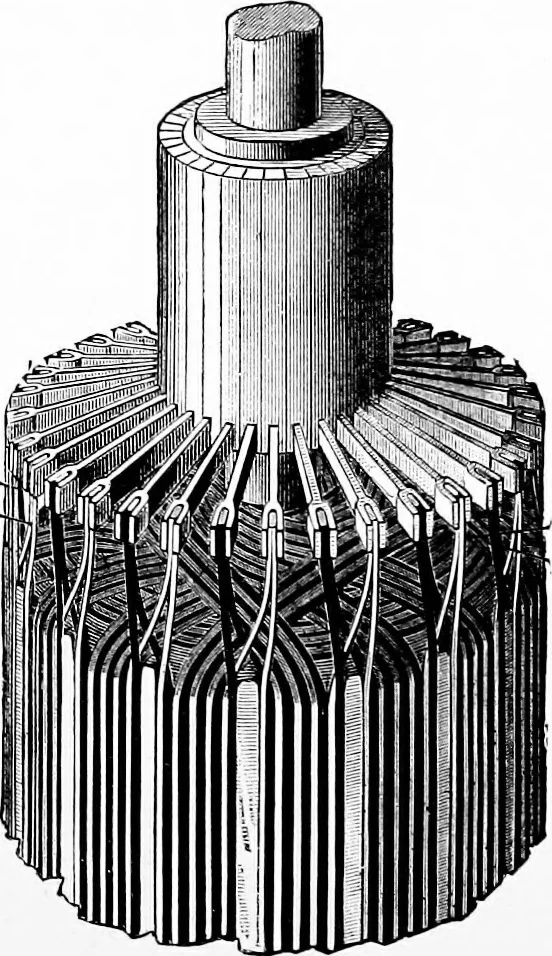

Diagram and Cross Section of Weston Armature. beginning of one coil of the first series, represented by theblack lines, is connected with a commutator bar, and theend of the same coil and beginning of the next black coil are Fig. 505. … Commutator Connections. connected with the second commutator bar in advance. Thecoils represented by the black lines are thus connected withalternate bars of- the commutator, and in a similar manner q 22 EXPERI-MENTAL SCIENXE.
