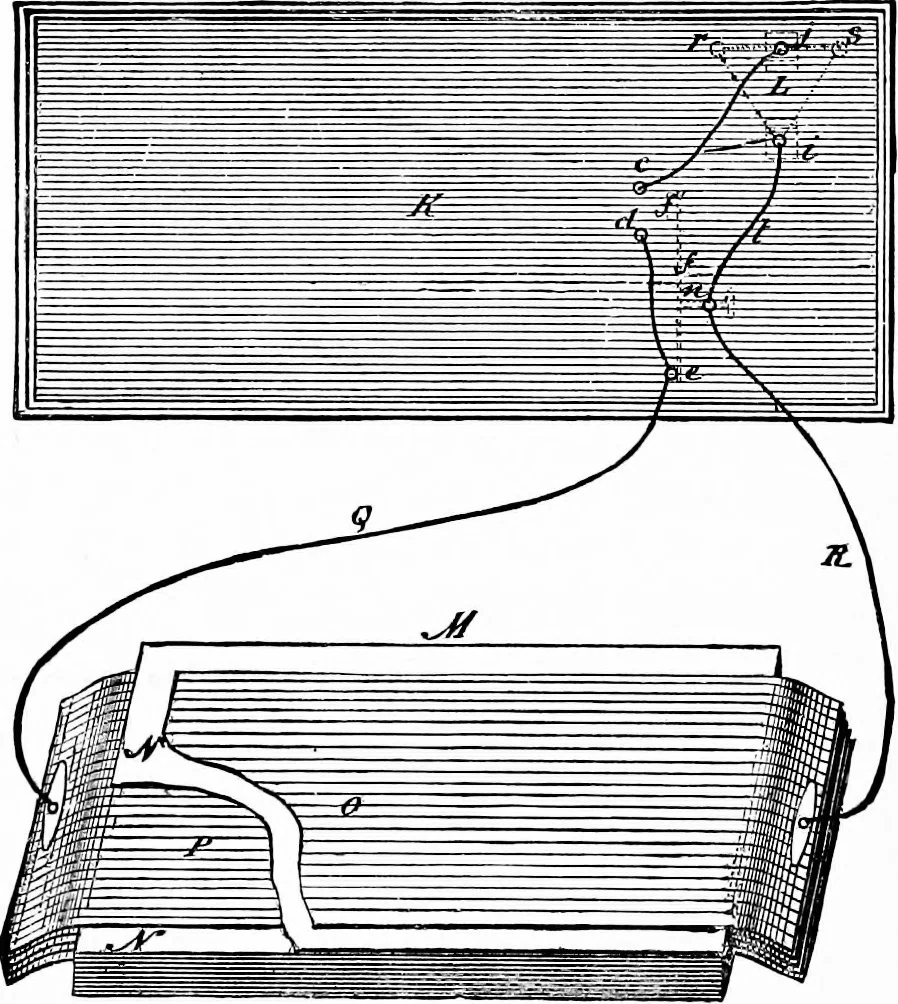

attery wires are connected with the binding posts. 554 EXPERIMENTAL SCIENCE. r s, the current passes through the springs, / q, bars, / m,pivots, £■ Ii, to the posts, i j. The post, j, is connecteddirectly with the terminal, c, of the primary coil, C. Thepost, /, is connected by the wire, t, with… … Diagram of Condenser Connections. attracted toward it, breaking the electrical connection at theend of the screw, o, when the iron wire bundle loses itsmagnetism, and the armature flies back until the spring, /,again touches the screw, 0, when the armature is againattracted, and so on. When the…
