Experimental science. Elementary, practical and experimental physics (1890)
Hopkins, George M. (George Milton), 1842-1902 · New York, Munn & co. · leaf 644

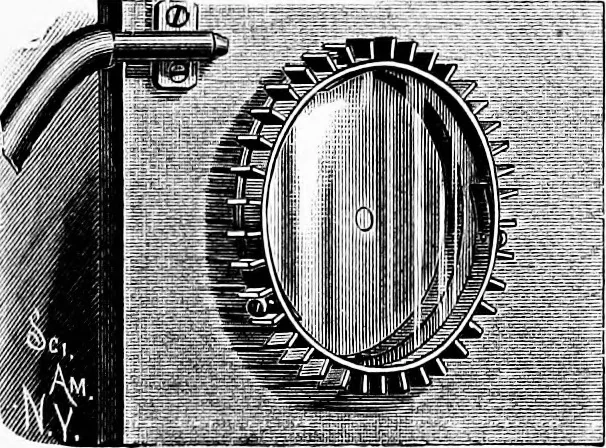

the means ofcommunicating rotary motion does not appear onthe screen,is shown in Figs. 593 and 594. In this apparatus a glasswheel, provided with a brass rim, is furnished with a shaft LANTERN PROJECTION. 621 which turns in a hole bored in the center of a thick glasssupporting disk. The brass rim… … Rotator for the Lantern. Fig. 594, Section of Rotator. the back piece is arranged to direct a jet of air upon thevanes, and thus cause the glass wheel to revolve. AFletcher blowpipe bellows furnishes a suitable blast forthis purpose. To the rim of the arlass wheel are fitted disks for blend- FlG,…
Physics · Lantern projection · Electric apparatus and appliances
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
