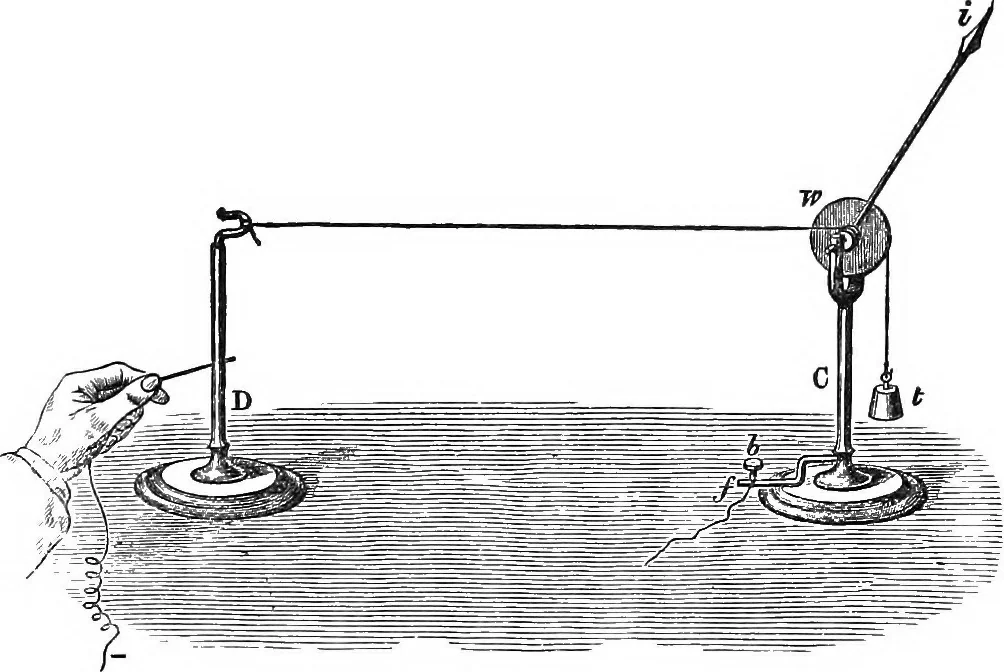

string which passes over the grooved edge of the wheel,keeps the wire gently stretched. The wheel is accompaniedin its motions by the index, i, which is simply a long,light straw. If the wire be tightened, the index moves inone direction; if it be relaxed, the index moves in theopposite direction.… … for a moment with this free wire, the battery currentpasses through the platinum wire; it is heated, and its ex-pansion is instantly declared by the fall of the index. Onbreaking the circuit the wire cools, contracts, and theindex returns to its first position. A momentary touchagain brings the…
