Problems in physics. Derived from military situations and experience (1919)
United States. War Dept. Committee on education and special training, Dodge, Homer Levi, 1887- · [Washington? · leaf 48

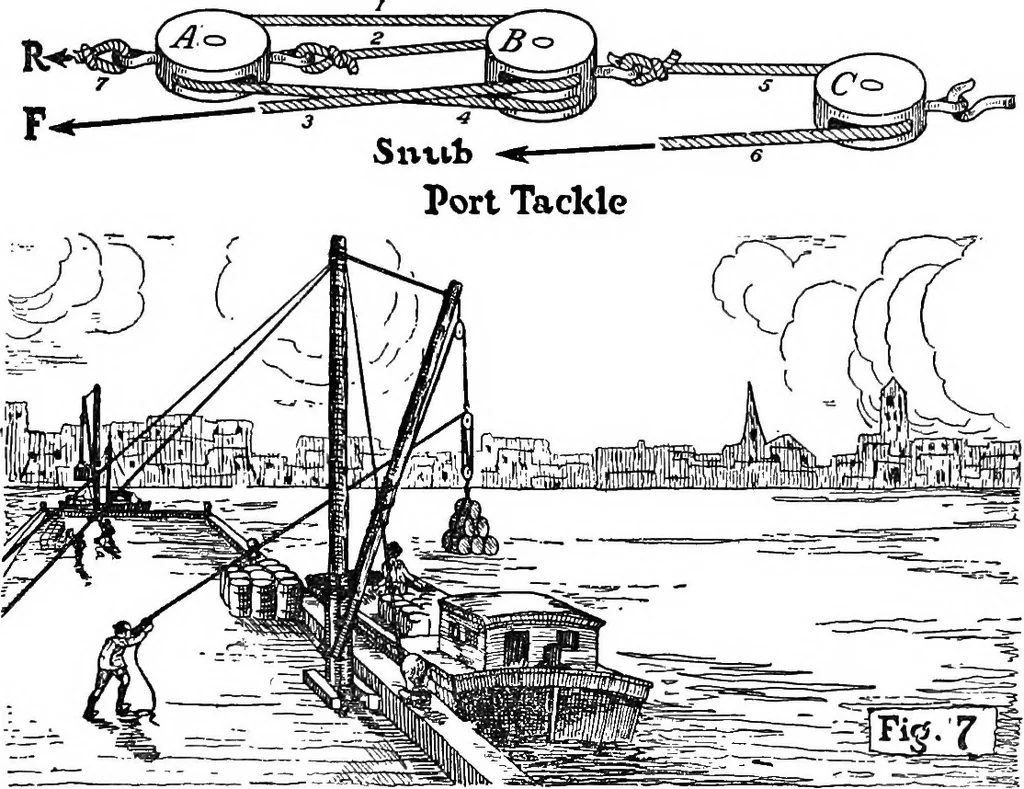

available.What mechanical advantage can be secured? Sketch thelayout. 24. To what use would you put an additional single block? 25. What is the value of the mast-to-boom Luff Tackle in such a situation as is shown in Figure 6? 26. The drum operating the mast-to-boom tackle shown in Figure 6 is… … PORT TACKLE27. What are the practical advantages of the Port Tackle?28. (a) If the barrels in Figure 7 each weigh 30 pounds, what force must the man exert? Neglect friction. (b) How strong must the rope be which supports thedouble block? Assume that the man is pulling at an angleof 30 degrees to…
