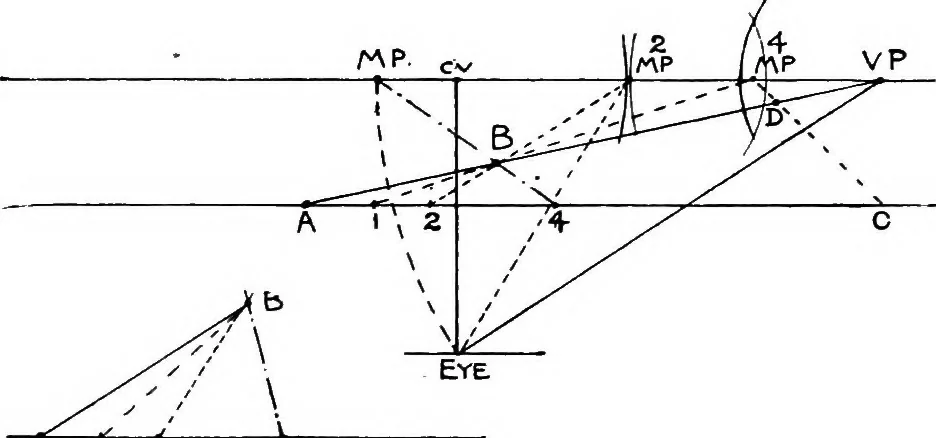

ts 73 angle BAG on plan, hence the angle M.P., V.P., eye, isequal to the angle BAG on plan. The base BG, on theplan, was obtained by striking an arc from A as centreand AB as radius. In the same way, on the workingdrawing, we place the point of the compass on V.P., stretchthe pencil to eye, and… … A 1 2. 4 Fio. 49.—Measuring long distances. line, BG crossing one line A, and crossing it in such amanner that it records on the picture-plane AC, the samelength as it serves to measure on AB. It is a point, too,found by the ready means of describing an arc from theeye to the horizon, using V.P. as…
