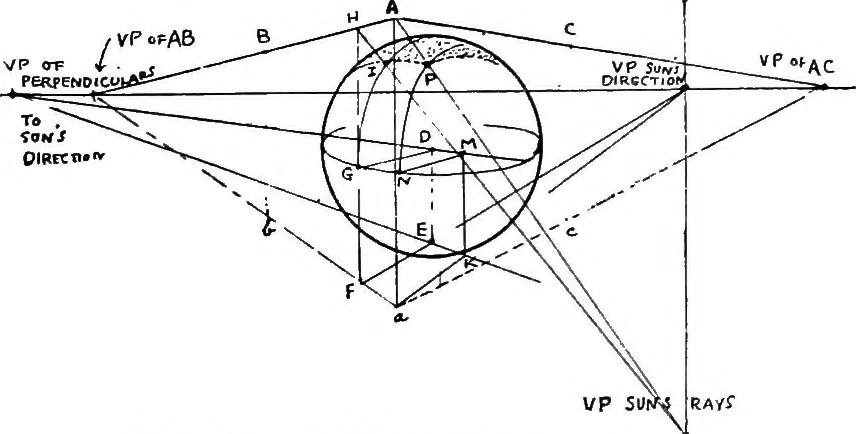

Fig 126.—The shadow from a sphere. point A: drop A to the ground, to a; draw aK to V.P.of suns direction, not to V.P. of AC; raise KM, project MN … Fig. 127.—A. shadow cast upon a sphere. from V.P. of suns direction, over NM draw a section ofthe sphere iu the plane of the suns direction. Then the 172 Perspective arc NP will be exactly between point A above and V.P,suns rays below. Join A to V.P. suns rays and P is apoint in the shadow.
