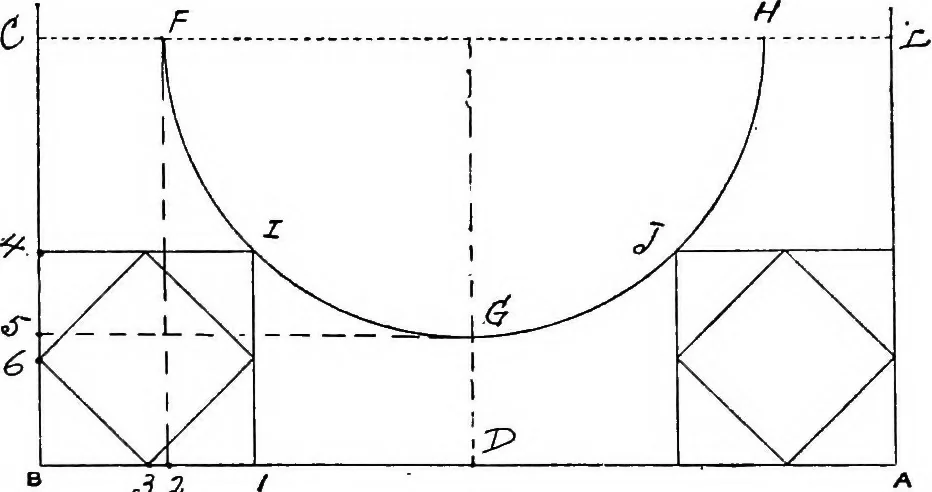

The eye is placed 11 feet down from the horizon {notfrom the ground-line), the distance from C.V. to eyebeing 11 feet by scale. The whole of the V.P.s being easily obtained, it willbe well to use them for finding the star, and not to merelyfind the positions of B, C, D, etc., by parallels to AH… … J 2 FiQ. 175.—Diagram Q. 2. (Scale \ inch to 1 foot.) feet to the right of the spectator and 1 foot within thepicture. The edge AB is to he inclined to the picture-planeat an angle of 30° towards the left. The eye is 12 feet 232 Perspective from the picture and 5 feet above the ground. Scale, Jam…
