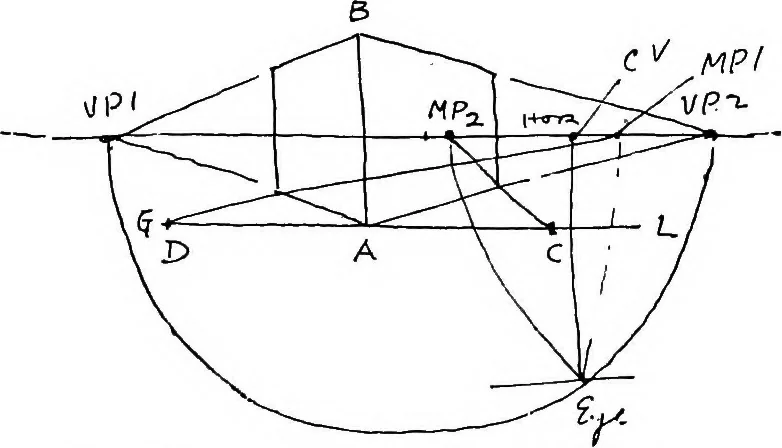

rticals from ACand D below. G is, however, found by vanishing FG to V.P.3. Question 7 (June, 1901). Diagram Q. 7 shows in per-spective a cvhe standing on ahorizontal plane. Find thevanishing points, horizon,measuring points, centre ofvision, and distance of the eyefrom the pietwre. (5 marks.) Fw.… … Fig. 197.—A sketch solution of the problem. nearest vertical AB sets the standard. The G.L. is drawnthrough A, so that AB is assumed to be in the pictureand actual. AO, therefore, is the length of AB; so is AD. Question 8 (June, 1901). Diagram Q. 8 shows in perspective a square slab lyingon a…
