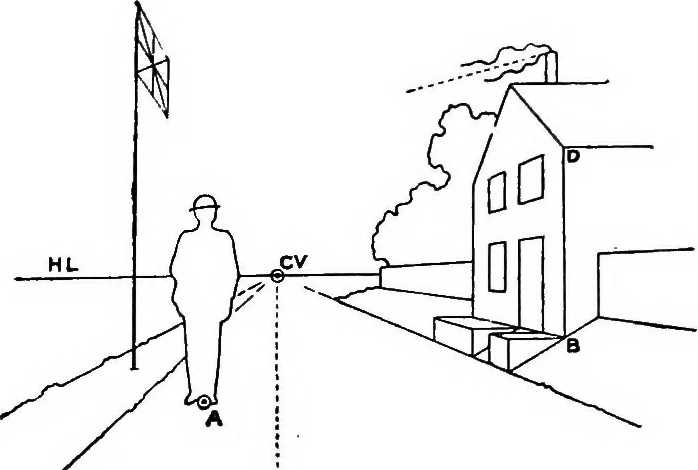

e carry P over D to Q, and S over P toT. DQ and FT are the required trees. Question 11 (June, 1901). Diagram Q. 11 shows in perspective a wayside irm,a man at point A on the ground-plane, and a staff withflag flying. All the details of the house are accuratelydrawn, its nearest edge BD heing 12… … 4eFig. 205.—Diagram Q H. supposed to he 6 feet high, and the flag and smohe to heaffected equally hy the wind. (12 marks.) If BD is 12 feet High, then, as it is a yertical lineand does not vanish, half of it must be 6 feet, the heightthe man should be. We therefore find the halfway upBD. The house…
