Elementary perspective arranged to meet the requirements of architects, draughtmen, and students (1913)
Crosskey, Lewes R · London, Backie and son ltd · leaf 122

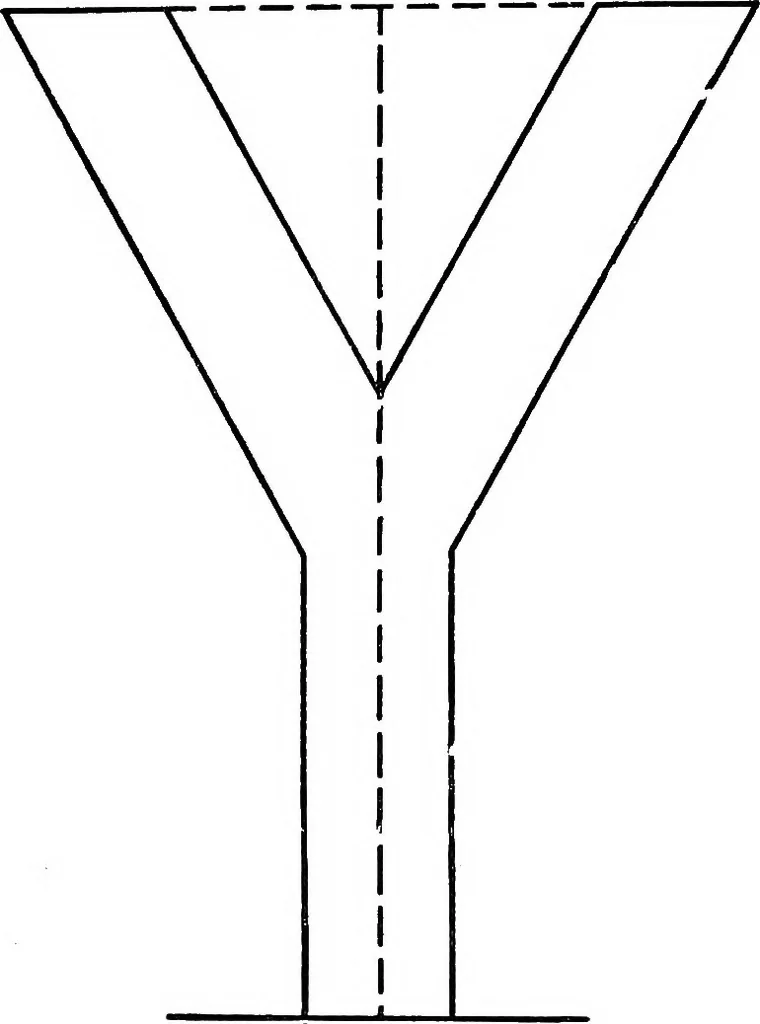

pon it. The board stands upon the ground plane, and the plane of the board isa vertical plane which recedes towards the left at an angle of 40° with the pictureplane. The corner A is to be 3 ft. on the right of the spectator and 2 ft. from theground line. Represent the board and curve in… … A Elevation 1 111 1 1 \1 APlan Fig. 27. PEOBLEM LII. Fig. 27 gives the plan and elevation of a letter Y cut out of wood. Represent theletter in perspective standing upon the ground plane. The corner A is to be 1 ft. onthe right of the spectator and 3 ft. from the ground line, and the face of the…
Perspective
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
