Elementary perspective arranged to meet the requirements of architects, draughtmen, and students (1913)
Crosskey, Lewes R · London, Backie and son ltd · leaf 17

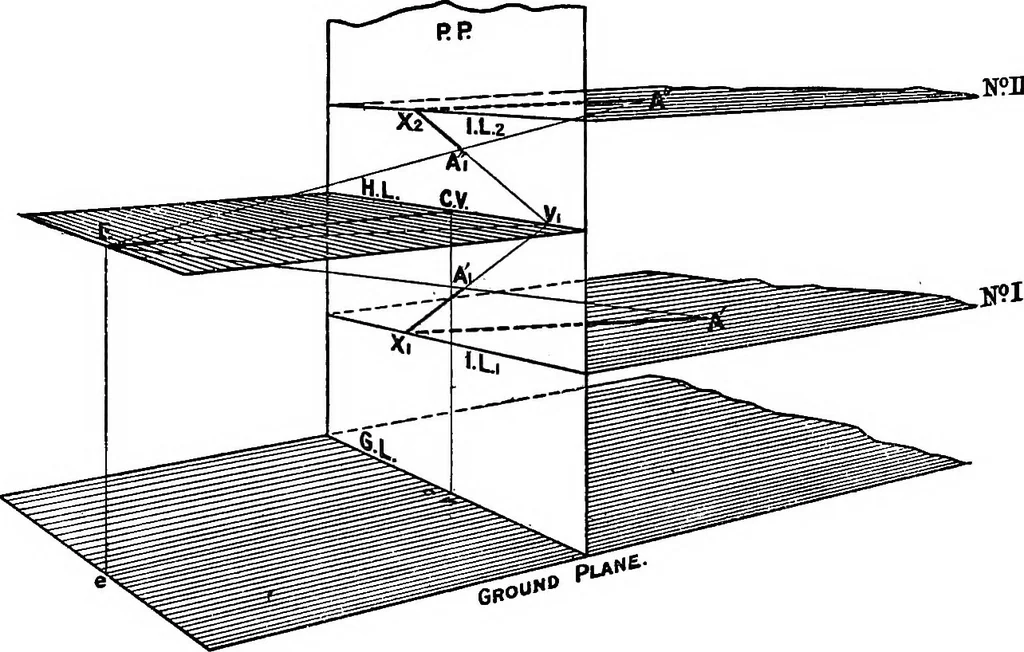

ontal plane passing through the eye. It will beevident that this plane wiU intersect the P.P. on the H.L., and that the H.L. mighthave been obtained by finding the intersection with the P.P. of a horizontal planecontaining the eye. This plane is called the Fanishinff Plane of all horizontal… … Fig. 9. The vanishing plane of horizontal planes is represented in fig. 9 by EVjH.L.,which is parallel to the G.P. and intersects the P.P. in the H.L. (the vanishing lineof all horizontal planes). In the same figure, two lines, XjA and XjA are repre-sented lying on horizontal Planes I. and II.…
