Printing; a textbook for printers' apprentices, continuation classes, and for general use in schools (1917)
Henry, Frank Souder, 1867- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 188

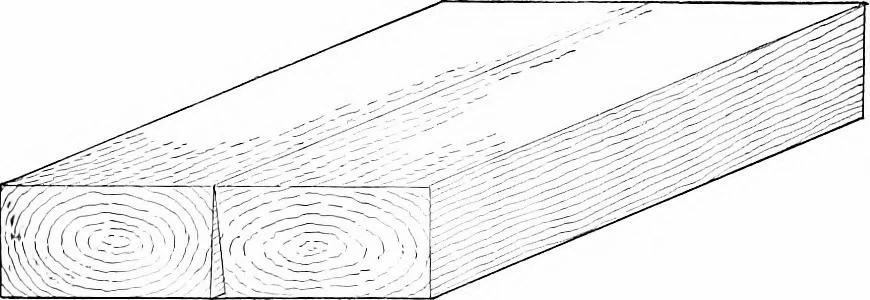

nd placethem side by side on the stone and see if a gap is visible betweenthem at the bottom. See Fig. 99. Sometimes the furniture isslightly wider at one point than at another. If this proves tobe the case, either insert other furniture, or turn one or two ofthe sloping pieces upside down, when… … Fig. gg.—Showing Two Pieces of Warped Wooden Furniture,pressure is applied by the quoins the furniture will ride. When material is wider at the top than at the bottom. In locking up,the form is slightly raised. As the cylinder goes over the form,the type is pushed down, but not the furniture. After…
