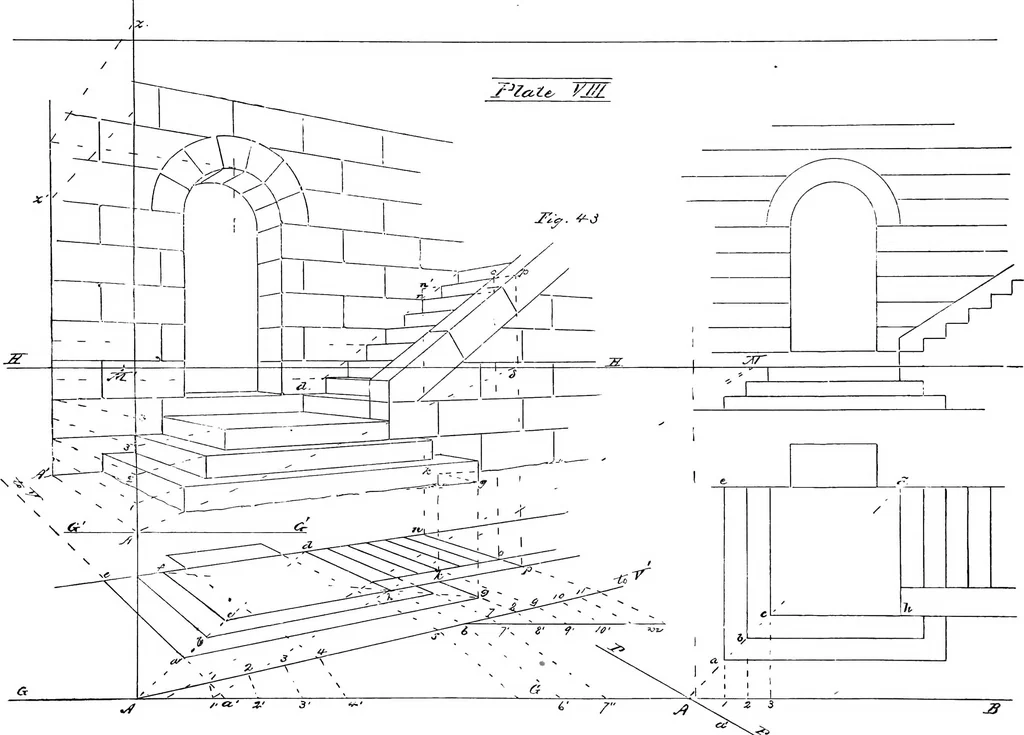

on the auxiliary scale Asi, the reduced units being transferred from Az. The archis sketched in : the method of constructing circles will be given later. The line atthe base of the wall of the ramp is found by setting back from g on the plan to k, andplumbing upon^F. The successive heights of the… … CONJUGATE VANISHING POINTS 33 a convenient upper step, no in the plan, and plumbing up a vertical to n in the picture,set off the edge on the height nn above by the scale Az. Then drawing the horizon-tal np, plumb up the points o and/ upon it. The bonding of the masonry offers nodifficulty.…
