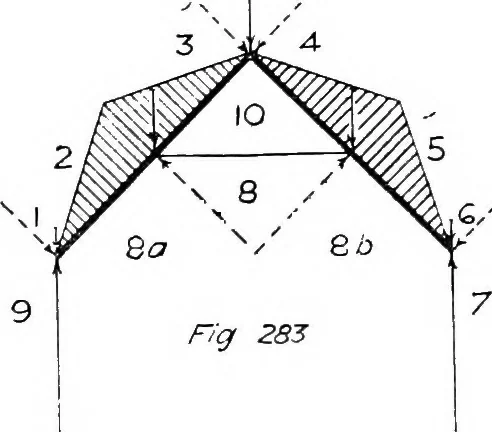

ns at the ends of the rafters. In orderto work out a stress diagram, virtual forces at right angles to the 86 THE MECHANICS OF BUILDING CONSTRUCTION rafters must be mtroduced to counteract this effect, as shown by dottedlines in Fig. 283. To obtain force 9-1, take moments about thejunction of…
