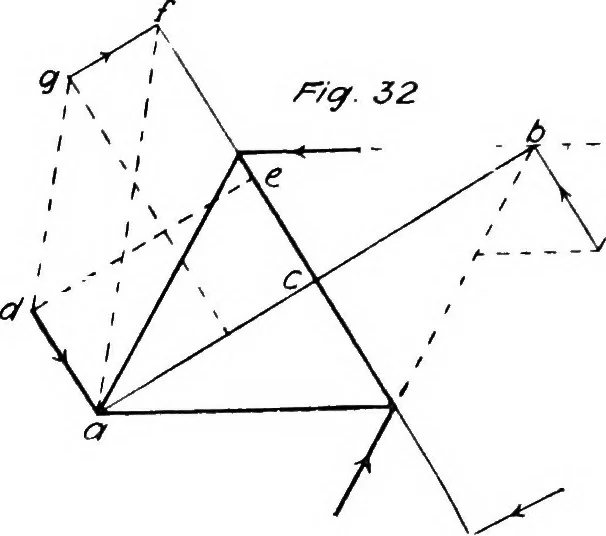

of 8 in. Find the balancing couple whose arm is 10 in. For answer, see Fig. 30. Q. 11. Forces are applied at the four angles of a square as follows: 4 lbs. at45 degrees, 10 lbs. at 60 degrees, 8 lbs. at 7S degrees, and 6 lbs. at 30 degrees.Find the magnitude, line of action, and sense of the… … For answer, see Fig. 32.I Note.—If two of the three given forces are combined, the resultant takenwith the remaining force will form a couple whose arm is a 6, and can only bebalanced by another couple of equal value acting in the opposite direction. Thentaking moments about the centre of arm c,…
