Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 138

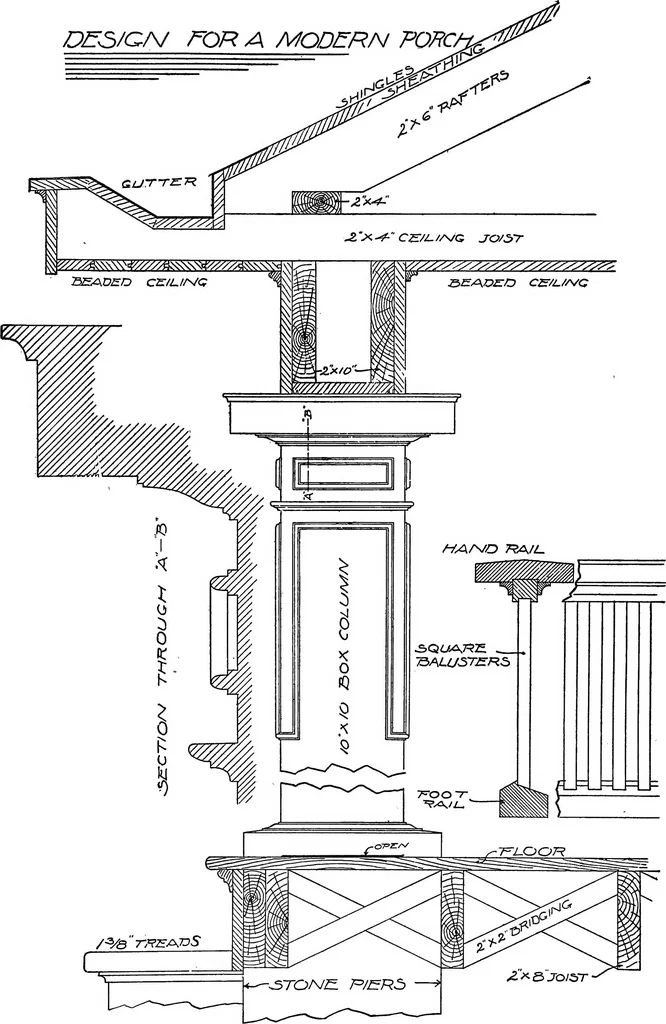

PLATE 124—DETAILS OF PORCH CONSTRUCTION Working drawings showing the design and trough invisible. Special attention is called to the construction of a porch with classic columns rest- fact that all the members of the porch system, ing on a brick and stone base. Note novel method balustrade, columns… … PLATE 125—PORCH WITH SQUARE BOX COLUMNS Design and complete details showing construe- balusters and broad hand rail. This is a dignifiedtion of a modern porch, consisting of 10 by 10 design well worked out. Note the method ofinch box columns, ornamented, simple square seating the porch rafters;…
