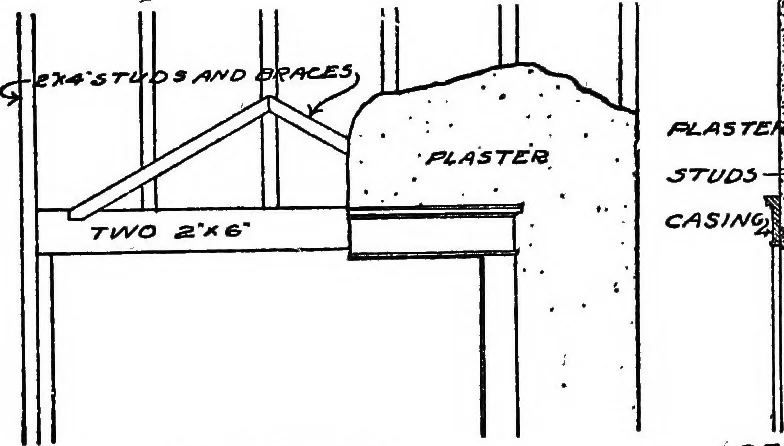

DOORS TO WORK UP AND DOWN Wide doors or partitions to work up and downare often required for churches. They are oper-ated like windows hung on weights, sliding up inthe double partition. The drawings show detailsof this arrangement. y BUMPER FOR SLIDING DOOR A bumper of sufBcient width should be… … £:le.vatiON \section FRAMING FOR CASED OPENING A simple form of trussing for door openingsthat are not too wide. Two 2 by 6s braced with2 by 4s as shown are amply strong.
