Young, George, jr, Baxter, Hubert Eugene, joint author · New York, The Macmillan Co. · leaf 240

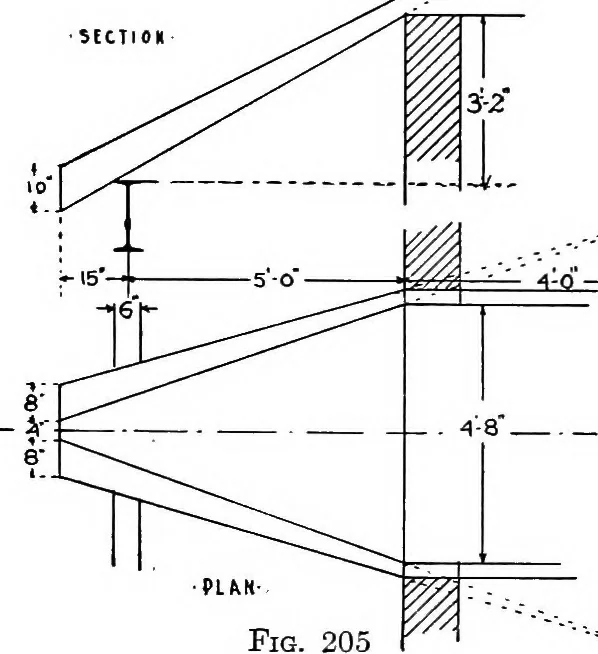

through a clip made from a bent plate. Given the size and … .--+ position of the chute and the beam, it is required to determinethe developed pattern of the clip, and the angle of the bend in it. 224 DESCRIPTIVE GEOMETRY [X, § 190 In Fig. 206, that part of the chute on which the clip is to befitted is redrawn at large scale, in plan and elevation. Let itbe…
Geometry, Descriptive
