Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 53

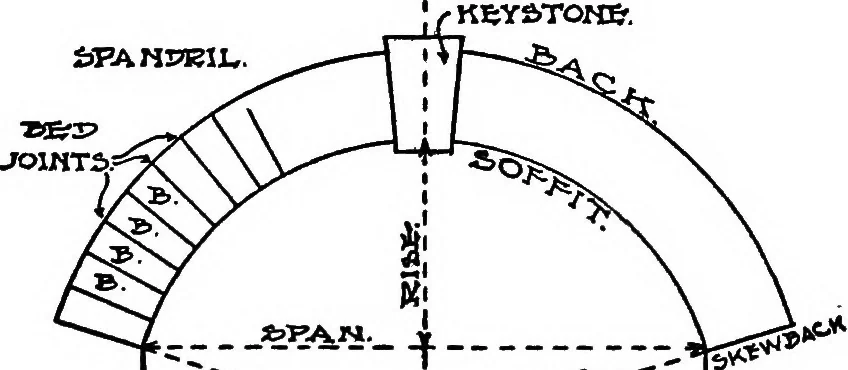

SFANSfeil,. F-iGURE; ee. … II FlGUl?^; 23. ASUTMSMT PLATE 41—CONSTRUCTION OF BRICK ARCHES Pigs 18 and 1&, interior views of flat archesas shown in Fig. 17, Plate 40. The main weightof the wall is carried by the concealed woodenlintels and the rough brick relieving or discharg-ing arch above. Figs. 20 and 21 show…
