Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 64

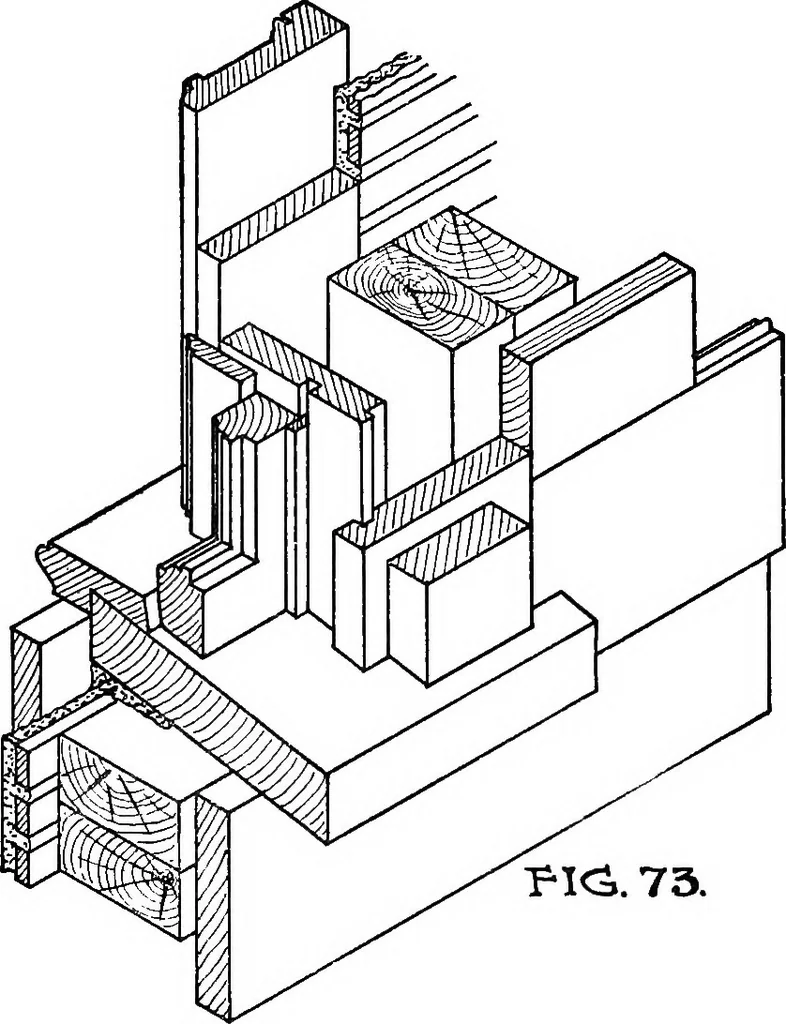

PIG. 72 SjIJvL. PICS.. 71. … PICi. 73. PLATE 52—DOUBLE HUNG WINDOW WITH GROUND CASINGS Skeleton frame construction in ordinary work, jamb showing ground casing (G. C). Fig. 71, Pig. 68, section through window head. Note tin section through sill. Pig. 72, isometric view of flashing to keep out the water. Pig. 69, section head…
Building
