Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 89

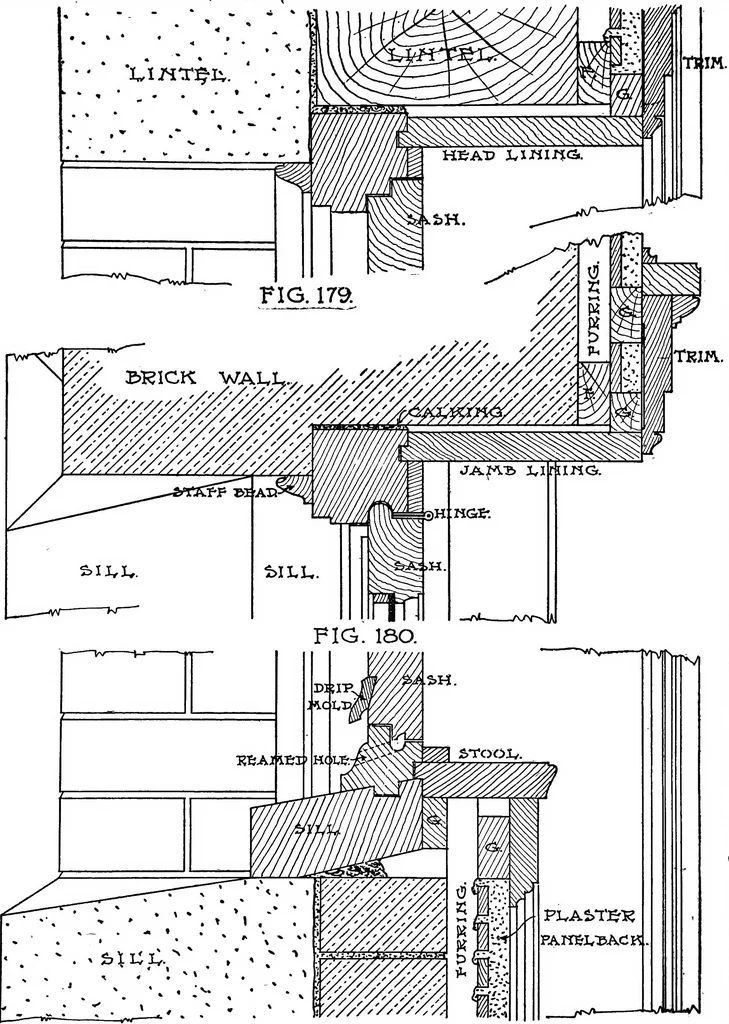

, section throughwindow sill. Note extra drip mould attached tolower part of sash to protect the lower joint. Fig.178, interior elevation showing inside trim. Theprojecting architrave above is now seldom used. Arrangement in frame walls, The sash andframe are rabbeted at the sill and a small… … r-iG. 181. PLATE 77—STORM-PROOF INWARD OPENING CASEMENT Arrangement in brick wall. Details of a very responding semi-circular tongue on the stile of successful method of constructing inward open- the sash. The sash tongue fits exactly into this ing casement windows so as to be proof against groove…
