Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 89

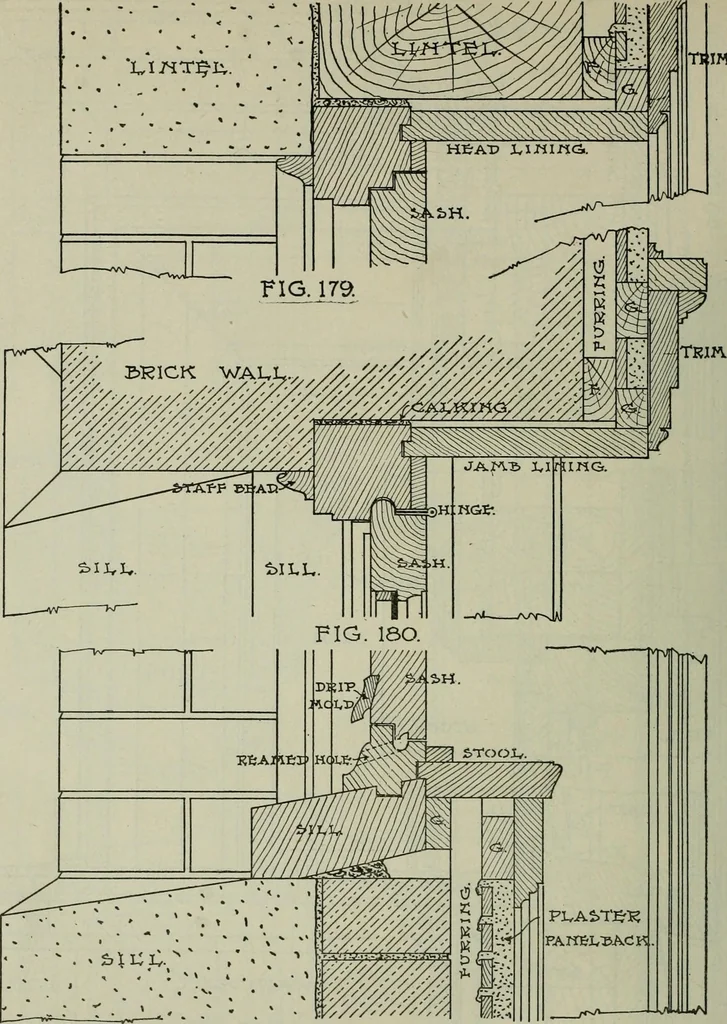

mall mouldis tongued into the jambs outside of the sash inthe manner shown. This mould is undercut soas to form a channel to catch any water whichmay beat in. This water discharges to the sill. Fig. 175, section through window head. Fig. 176,section through jamb. Fig. 177, section throughwindow… … FIG. 181. PLATE 77—STORM-PROOF INWARD OPENING CASEMENT Arrangement in brick wall. Details of a very responding semi-circular tongue on the stile of successful method of constructing inward open- the sash. The sash tongue fits exactly into this ing casement windows so as to be proof against groove…
