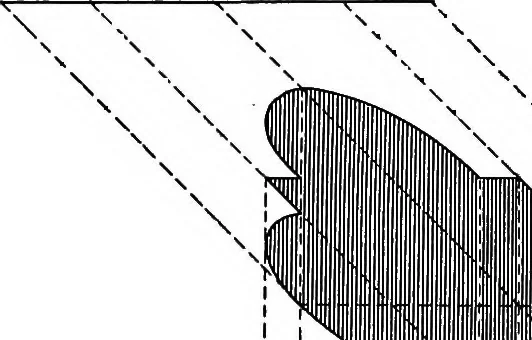

tio of S/S to 1, and longer than the projections of the sidesin the ratio of VS to V2. 37. Auxiliary Plane at ^5 Degrees.—If (Fig. 24) a horizontal square is set, as before, with its edgesparallel and perpendicular to the vertical plane of projection, the projection upon this vertical plane of… … z / / Fig. 24
