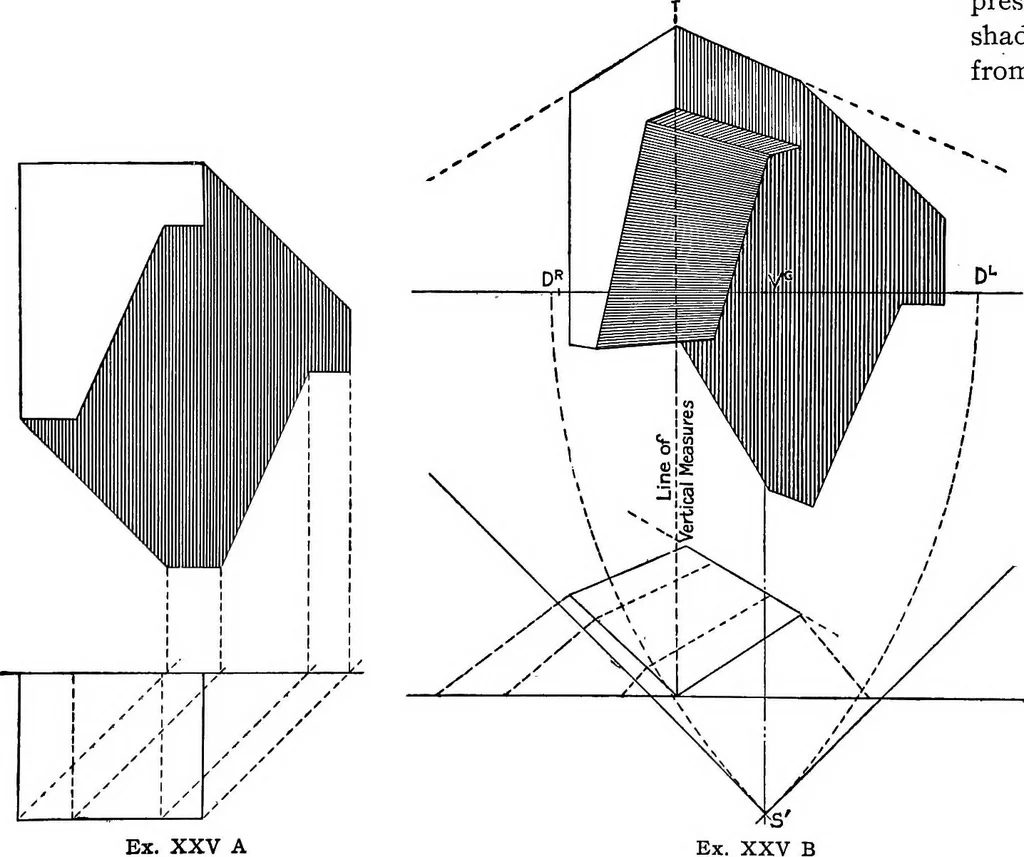

X V A. The Same; Plan and Side Elevation, with Shadow on the Wall. Example XXV B. The Same;Perspective Plan, and Perspec-tive, With Shadow. The Vanish-ing Points are omitted, but areeasily found. V^ and V^ are asfar from V^ as is S. V isabove V^ at the distance V- D-.Example XXVI A. A Roofand… … Ex. XXV A ARCHITECTURAL APPLICATIONS 57 Example XXVI B. The Same; Perspective Plan and Perspective.—In this drawing, the hip line of the roofis, as appears from the perspective plan, parallel to the plane of the picture. The shadow of the chimneyand of all other vertical, lines is parallel to it.…
