Shades and shadows, with applications to architectural details, and exercises in drawing them with the brush and pen .. (1912)
Ware, William R. (William Robert), 1832-1915 · Scranton, International Textbook Company · leaf 73

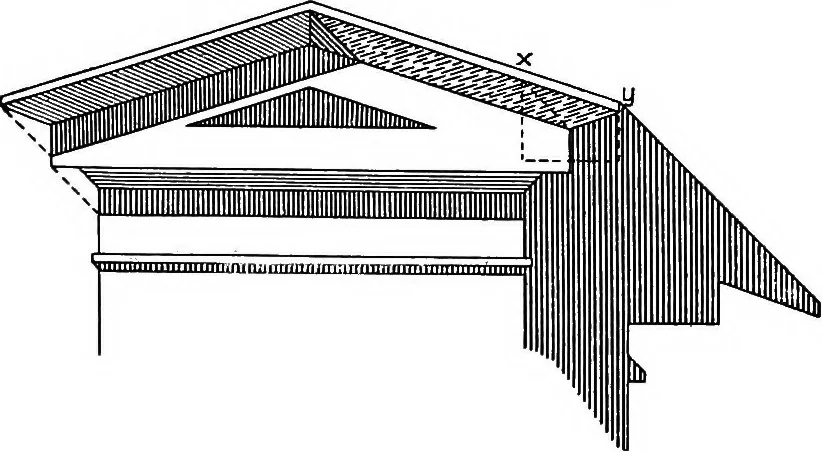

Ex. XXXIV 62 SHADES AND SHADOWS … Ex. XXXV C Unequal Overhang.—In Figs. Q, R, S, and T, the slope of the roof is the same, and the eaves are horizontal.They either project more than the gables, or less, and the first rake is in light, as at Q, in shade, as at S and T, or in neither, as at R, accordingly. Pediments.—In classical…
Shades and shadows
