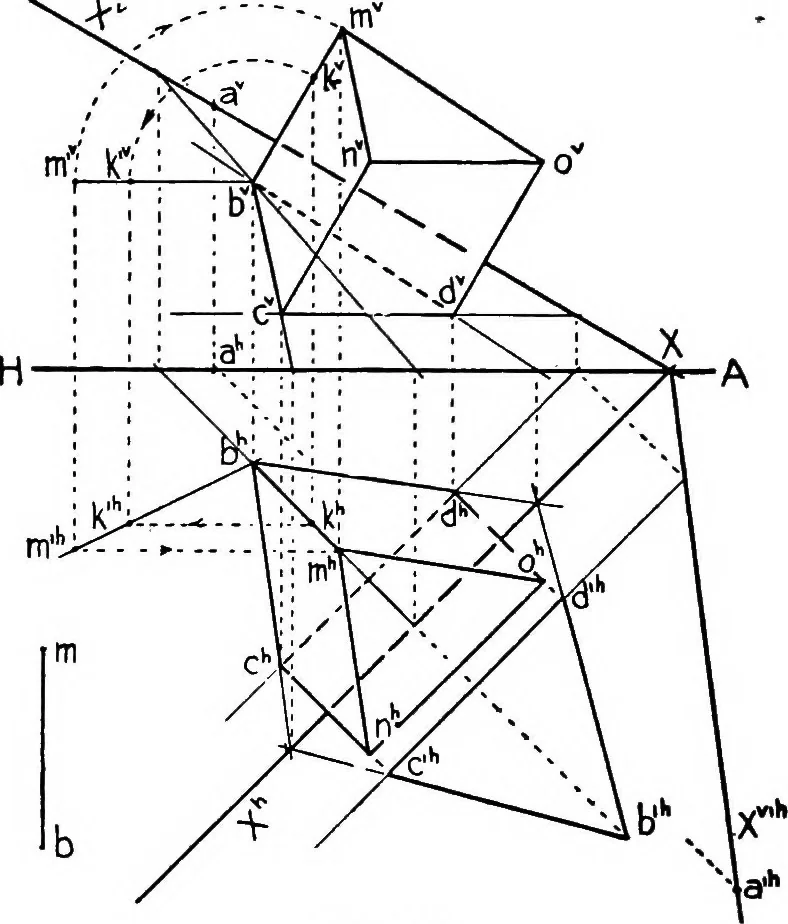

n the caseof a pyramid), or a point on the top face (in the case of a prism)(§ 30). These points are then connected with the base pre-viously determined. 108 DESCRIPTIVE GEOMETRY [VI, §97 In Fig. 109, let the plane X be given, and let it be requiredto construct the projections of an equilateral… … .FiQ. 109 shape of the base ic^h^d^) is arranged in the. desired position,and then counter-rabatted upon X {% 96). Next, one of the vertices, h, is selected, and the projectionsof a line of indefinite length perpendicular to X are drawnthrough the projections of the point, to represent one of…
