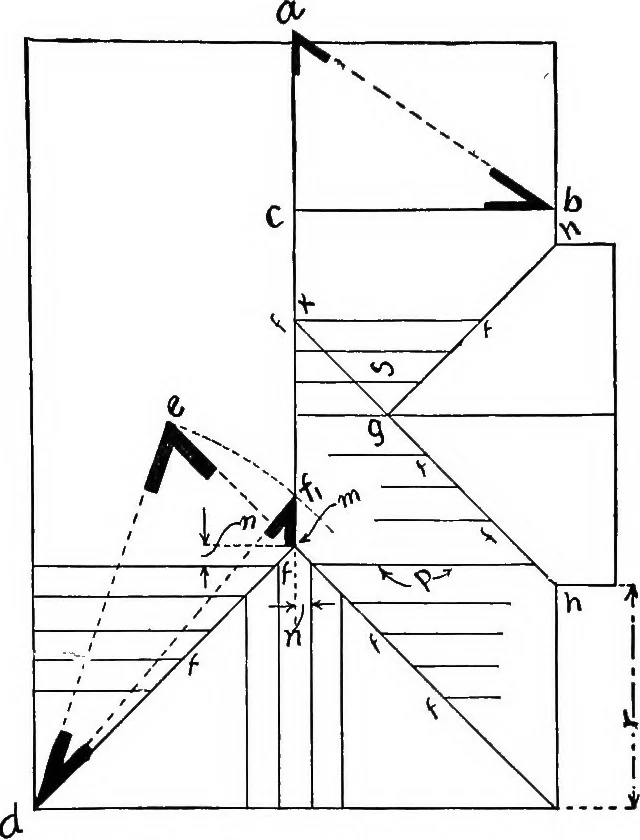

own at e and d. In order to obtain the cheek, or sidecuts of the hip, valley, jack, and cripplerafters, set compasses at the radius de,and, with d as center, draw an arc cuttingthe ridge at /i; connect d and /i. Theangle /i is the cheek cut of all of the Fig. si. — Platerafter ends marked /. The…
Carpentry
