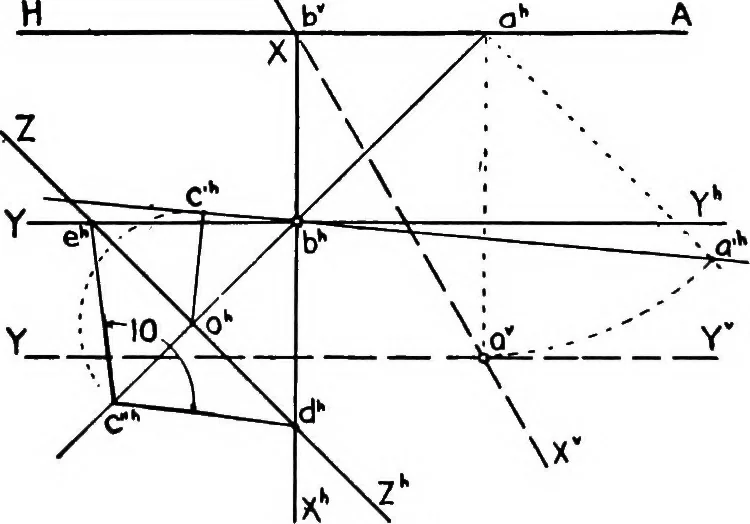

FiQ. 203 8 and 9. The dovm cut andthe side cut for gutter boards.Draw an enlarged plan and ele-vation as in Fig. 202. Rotatethe sides osvp and ostq, succes-sively, on OS as an axis, untilthe required angles are parallelto H. This gives the anglesmarked 8 and 9 in the figure asthe true sizes. 10.…
