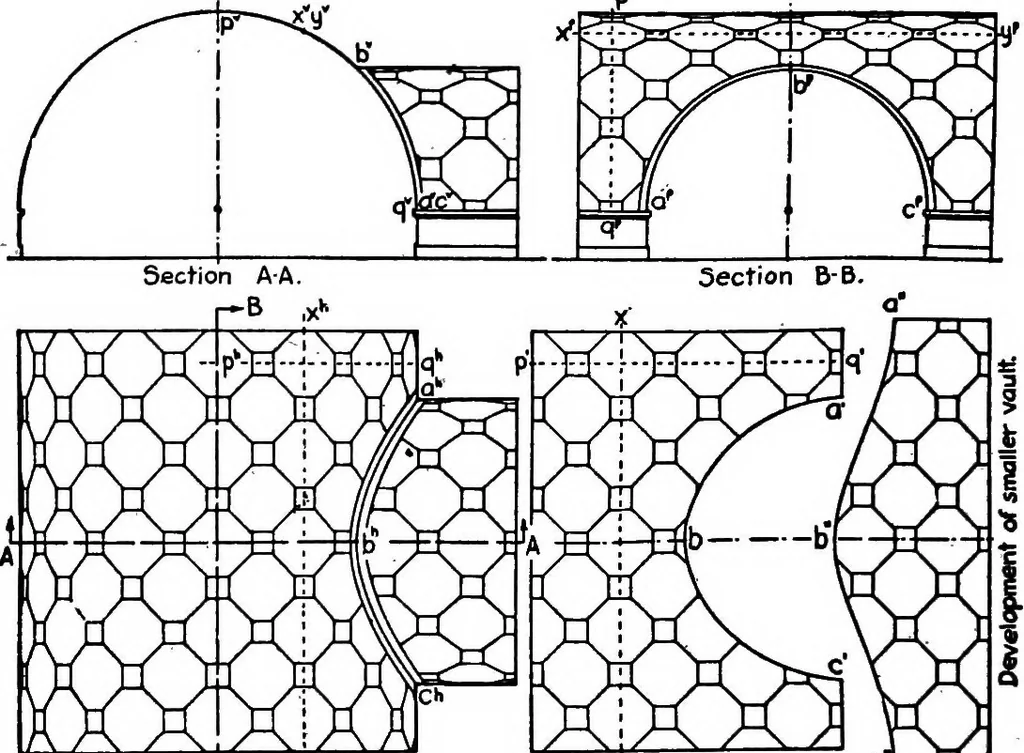

Looking dov<nH*-Looking up.Fig. 221 238 DESCRIPTIVE GEOMETRY [XI, 5 199 development is drawn first, the pattern being worked out on theflat, so that they fit it perfectly and repeat or work out allaround as may be desired. For flouble-curved or warped surfaces, the decoration, ifgeometrical, may… … Plan - looking up. . y pi Development of 6re^ halflarger voult Fro. 222 representations, it is necessary to work on a three dimensionalmodel, either at scale or in full size, unless a satisfactory ap-proximate development (§§ 157 and 161) can be made. 200. To Show a Geometric Pattern on a Barrel…
