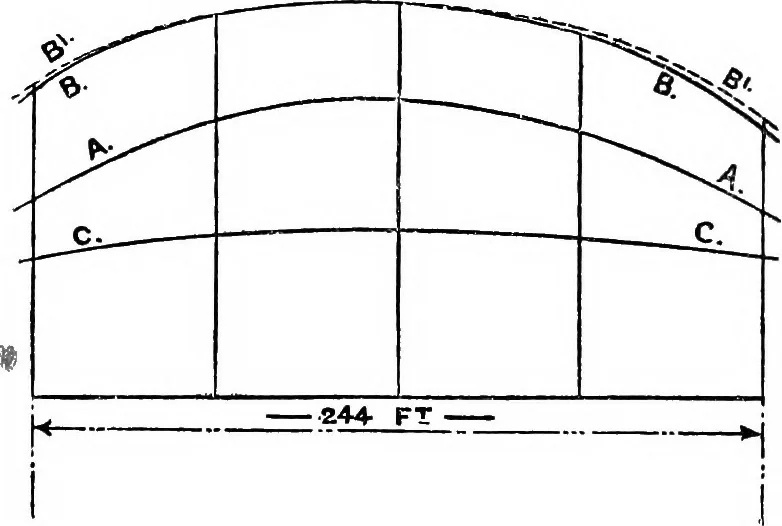

placed on, the weight of eachframe can be obtained by a simple measurement, and so thetotal weight of the framing determined. The curve AA inFig. 82 gives a curve as constructed in this way for the transverseframing below armour in the double bottom of a battleship.Before and abaft the double… … Fig. 82. can construct a curve of girths, as BB, Fig. 82 ; but the area giv,enby this curve will not give us the area of the plating, becausealthough the surface is developed in a transverse direction Calculation of Weights, etc. 193 there is no development in a longitudinal direction.…
