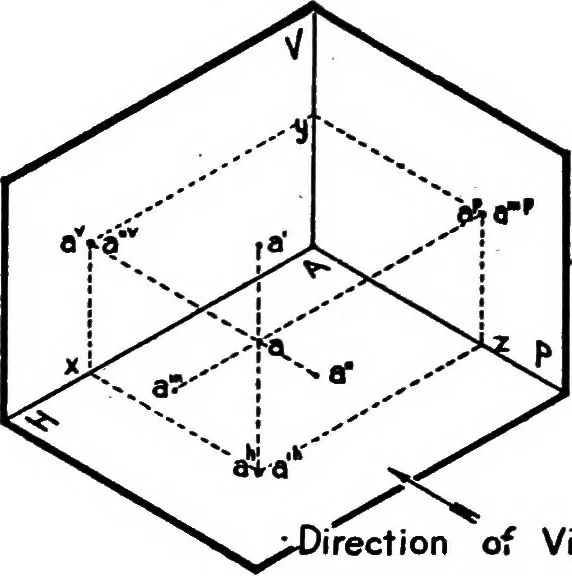

d for rapid,sure, and permanent progress. The development of modempractice, infinitely more efficient and more flexible than the old,was thus made possible. CHAPTER n PROJECTION OF POINTS 6. Introduction. In the previous chapter it was shown, bythe use of Fig. 8, how the projections of a g-ven body… … BA=hoTiz(nitaI axisT^j1=vertical axisPA=ptoSle azia irection of ViewFig. 9 7. Fundamentals of Point Projection. Figure 9 shows themethod of orthographic projection applied to a single point.It should be carefully studied in order to fix thoroughly in themind a few fundamental relations. (See…
