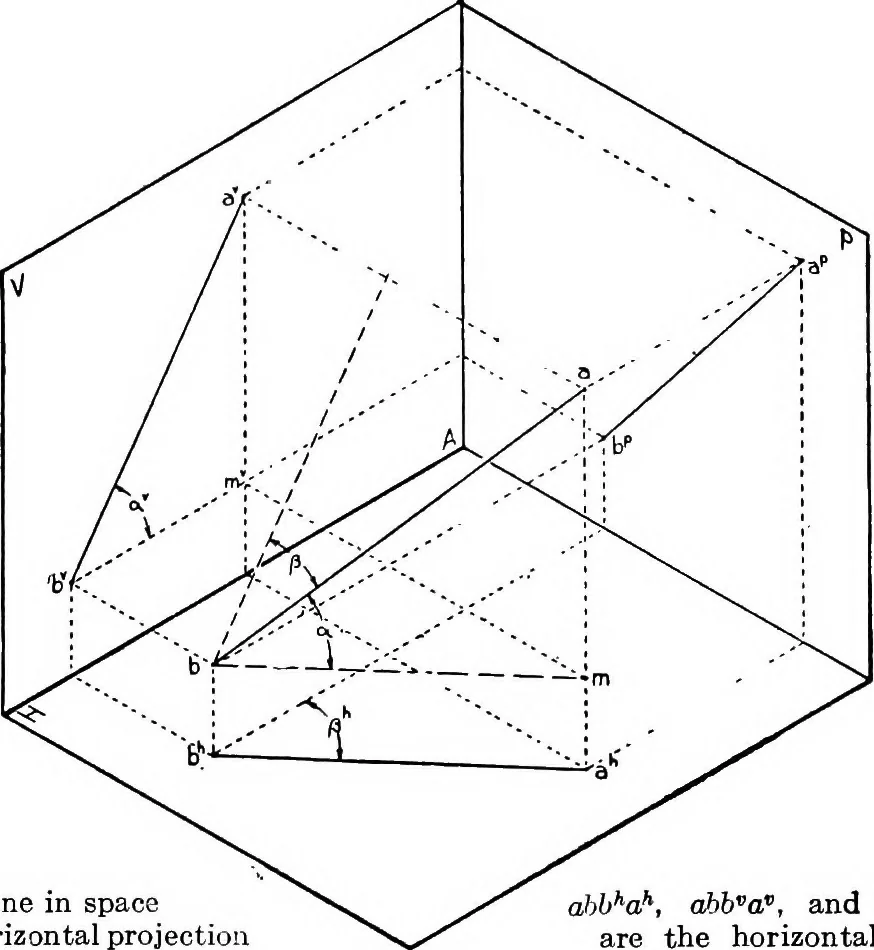

22 DESCRIPTIVE GEOMETRY [HI, § 17 Figure 19 shows a line which is inclined to both planes ofprojection. It will be evident immediately that the projectionsare each shorter than the line itself, and that the angles a and/S* between the projections and HA are greater than the angles … a6=a line in space(i*6*=horizontal projection(j»6«=vertical projectiona!6i=profile projection Fig. 19 ahba, ahha, and dbb^aiare the horizontal, verti-cal, and profile, projectingplanes a and /S, which the line makes with the planes of projection.18. Normal and Special Cases. The previous article…
