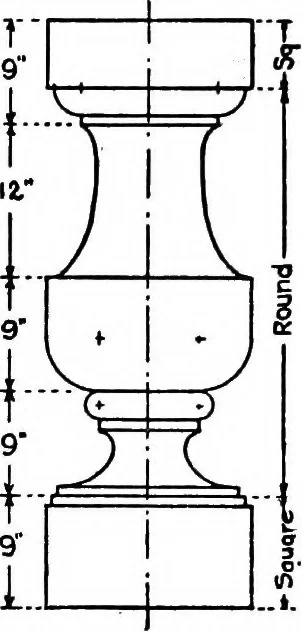

ter in Fig, 273. Placethe center of the base on H, 1 — 6 from Vand 1 — 6 from the left border line. Scale,3 = 1 — 0. EXERCISE SHEET CXIV (§216) Cast the sun shadows on a warped doorwayrecess, similar to Fig. 223. In drawing thedoorway, let the front arch be semicircular,7 — 0 in diameter; and let… … FiQ. 273 EXERCISE SHEET CXV (§216)Cast the sun shadows on Fig. 274. Scale, \ = 1 — 0 EXERCISE SHEET CXVI (§220) \r:\ _n. •4- r~^
