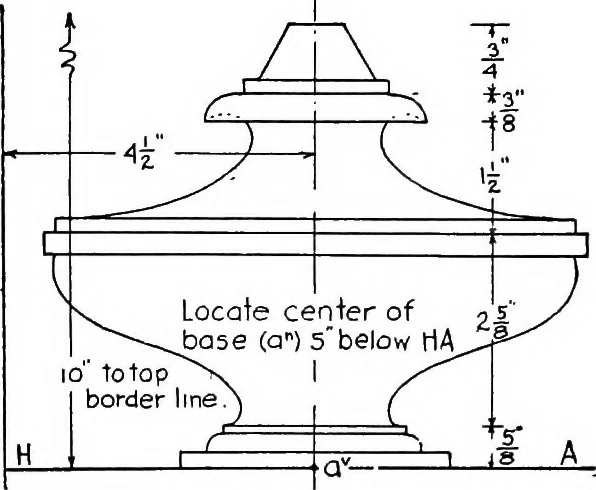

Fig. 271 EXERCISE SHEET CXII (§216) With the sun as the source of hght, determine the shade line andshadows, also the shadows on H and V, for the double-curved surfacein Fig. 272. … Fig. 272 APPENDIX 309 EXERCISE SHEET CXIII (§216) With the sun as the source of hght, determinethe shade line and shadows, also the shadows onH and V, for the baluster in Fig. 273. Placethe center of the base on H, V — 6 from Vand 1 — 6 from the left border line. Scale,3 = 1 - 0. EXERCISE SHEET…
