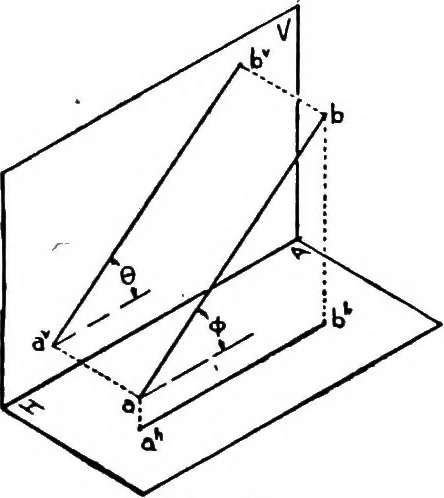

equal in length to the given lineab, and that the length of the Hprojection is less than the lengthof the line. Moreover, the angle 0is equal to the angle ^. Nowimagine the line ah to be rotated inthe plane aa^h^h, using a as a center.During the rotation, the length ofthe V projection, at, will… … FiQ. 18 22 DESCRIPTIVE GEOMETRY [in, § 17 Figure 19 shows a line which is inclined to both planes ofprojection. It will be evident immediately that the projectionsare each shorter than the line itself, and that the angles a° and/3* between the projections and HA are greater than the angles
