Descriptive geometry (1921)

Young, George, jr, Baxter, Hubert Eugene, joint author · New York, Macmillan · leaf 57

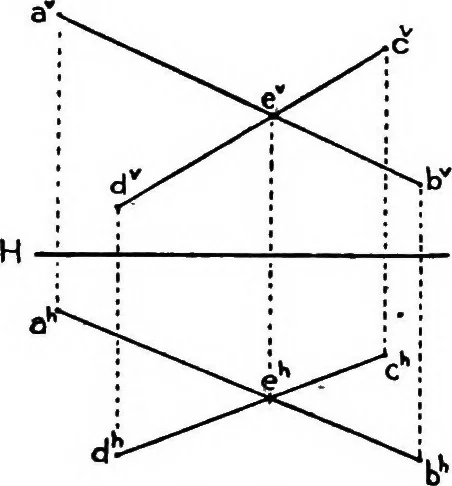

An illustration from Descriptive geometry, 1921, leaf 57
s of ajbi. 2. Given c (15, 9, 5) and d (24, 9, 5), find the trace of cd. 3. Given e (28, 4, 3) and/ (37, 10, 4), find the H trace of ef. 4. Given g (40, 3,10) and h (40,16, 3), find the // and V traces of gh. 5. Given i (48, 2, 13) and j (68, 8, 4), find the H and V traces of y,and locate k on ij 2… … A H

Geometry, Descriptive
